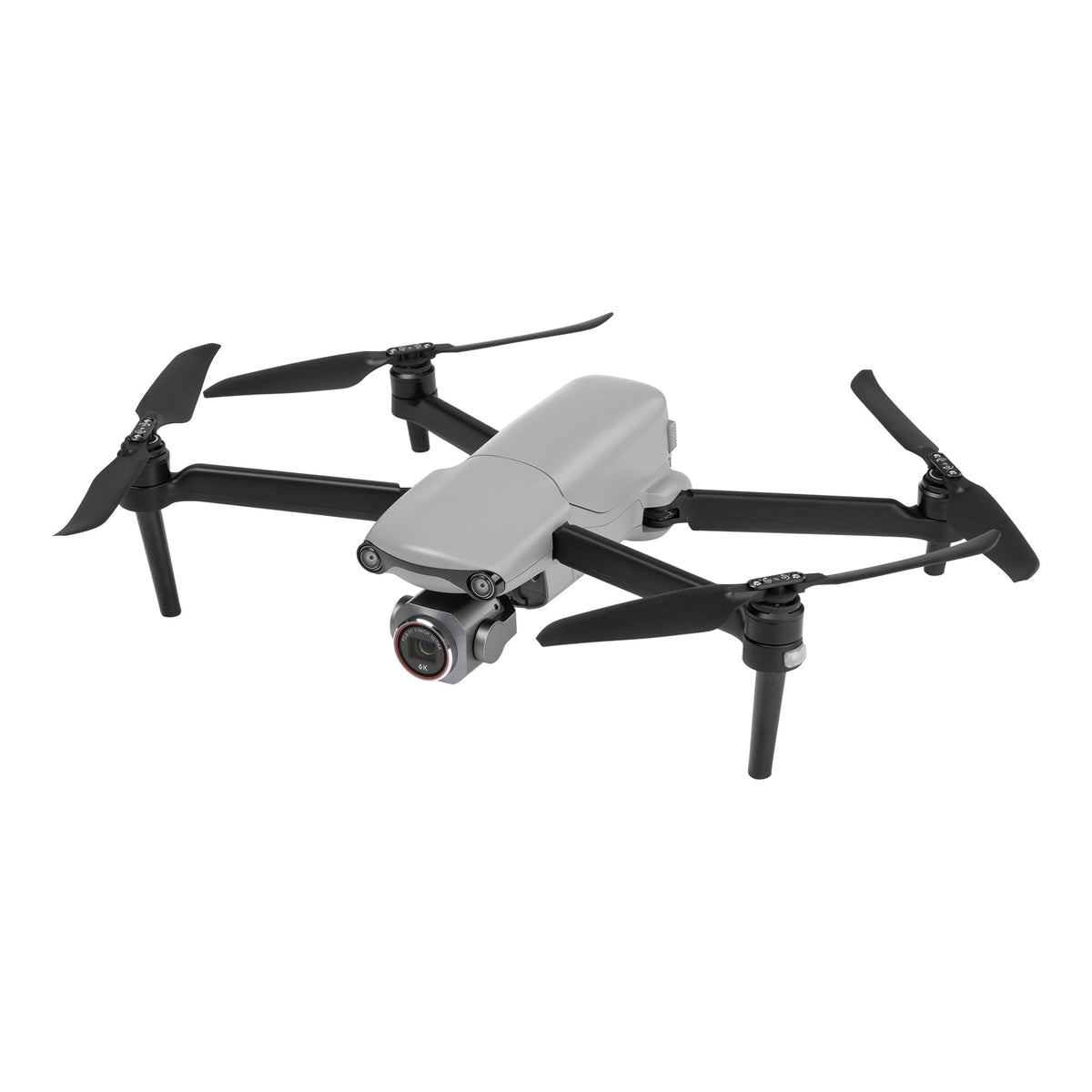

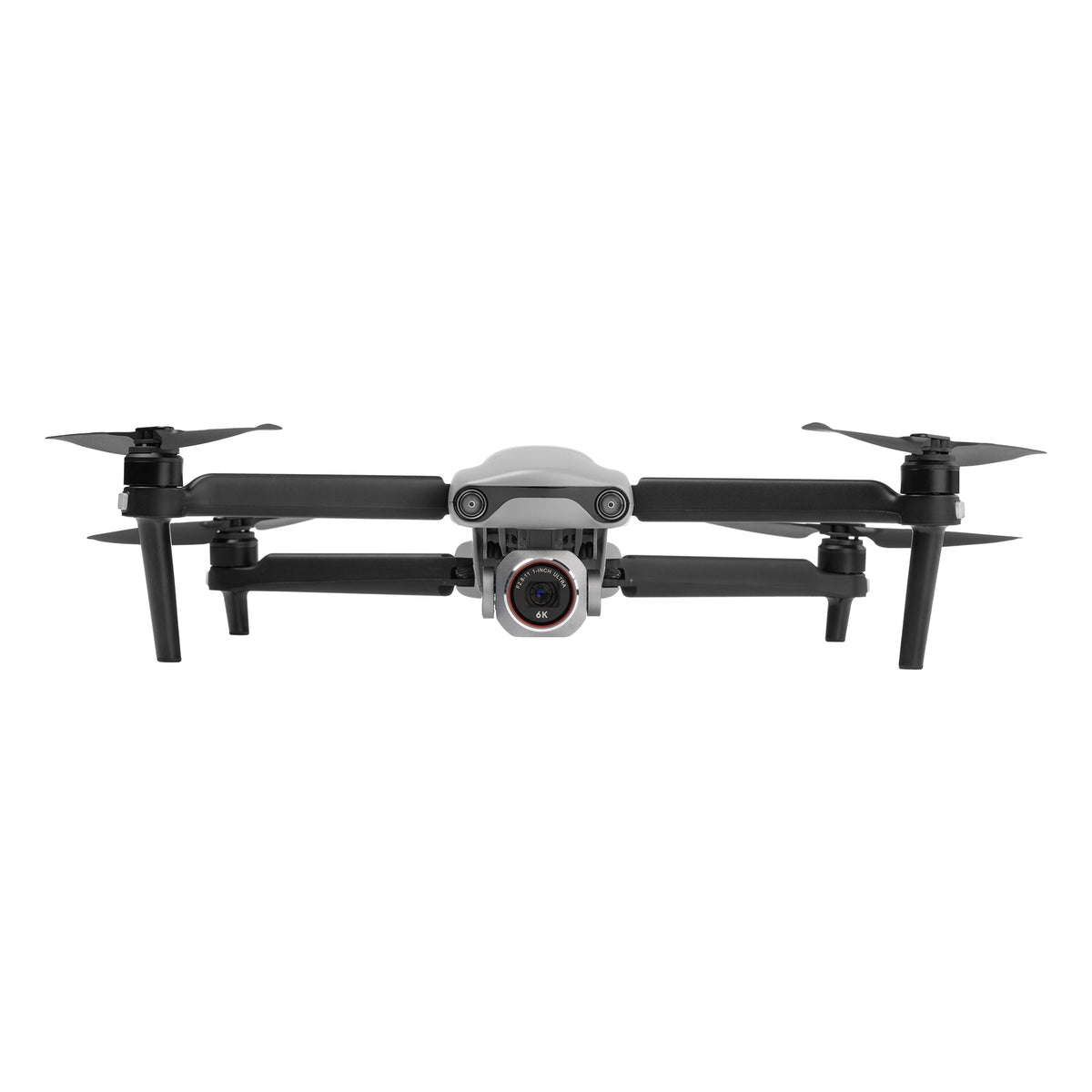

EVO Lite 6K Enterprise

• Easy to carry and deploy, suitable for industrial applications
• AI target recognition automates identification and mapping of various objects
• Three-way binocular vision ensures safe flight operations
• 1“ CMOS 20MP RGGB camera able to record in 4K/30FPS Video

• Industry-leading 40 minutes flight time
• Transmission range of 7.4 miles
• Simplifies operation, enabling efficient, single-person deployment for scenarios like public safety and emergency rescue

[keyfeatures]

• Overview
• Comprison
• Specs

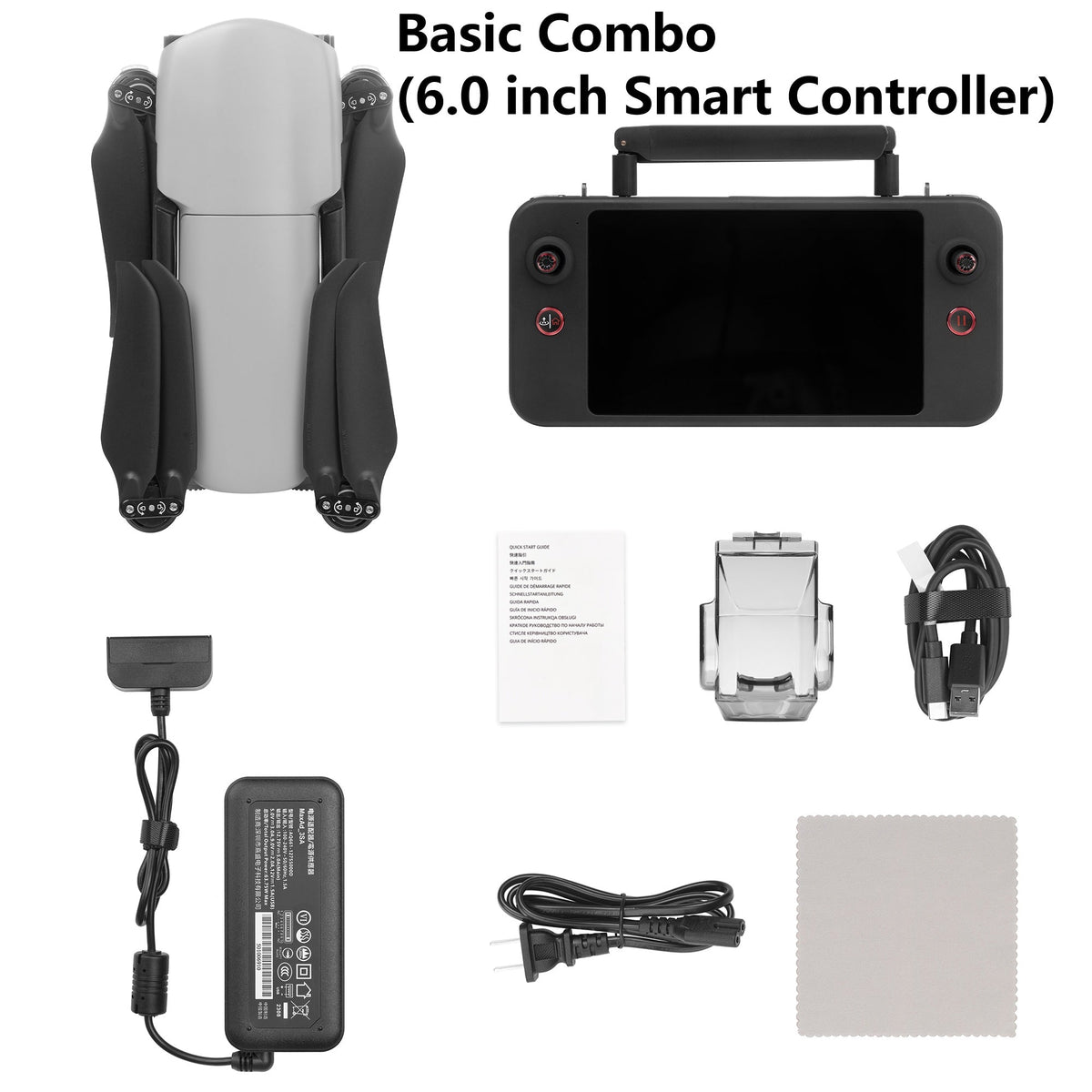

• In the box

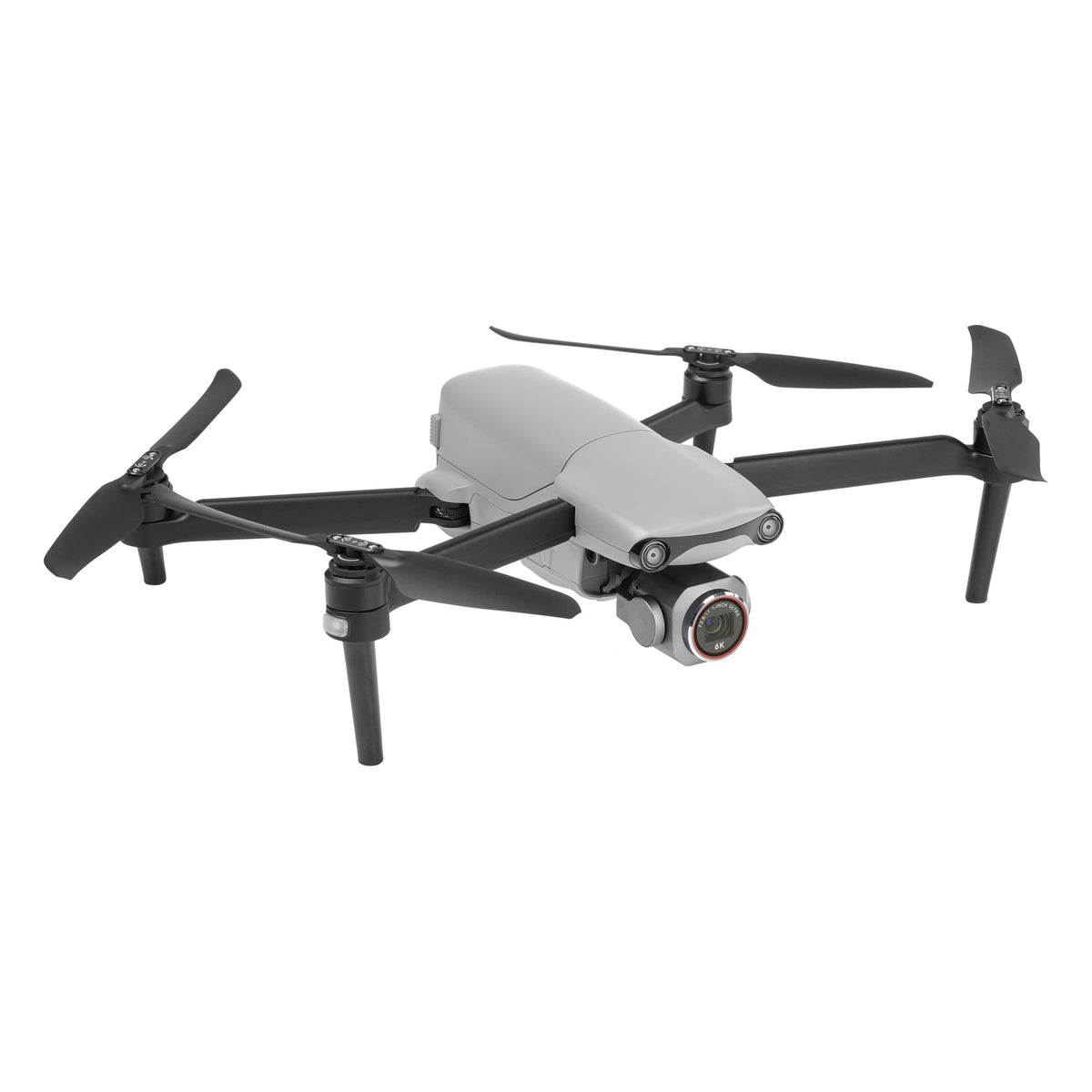

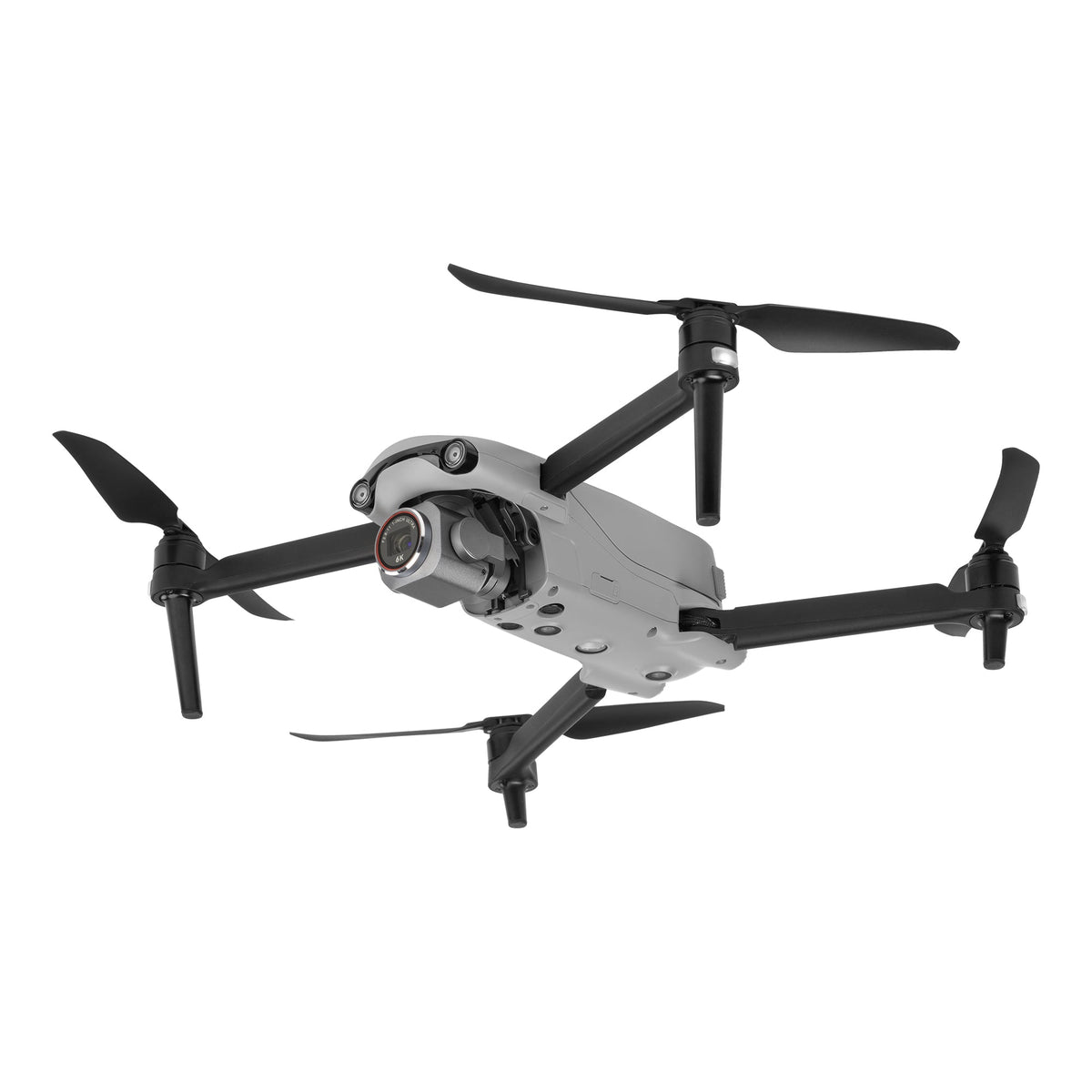

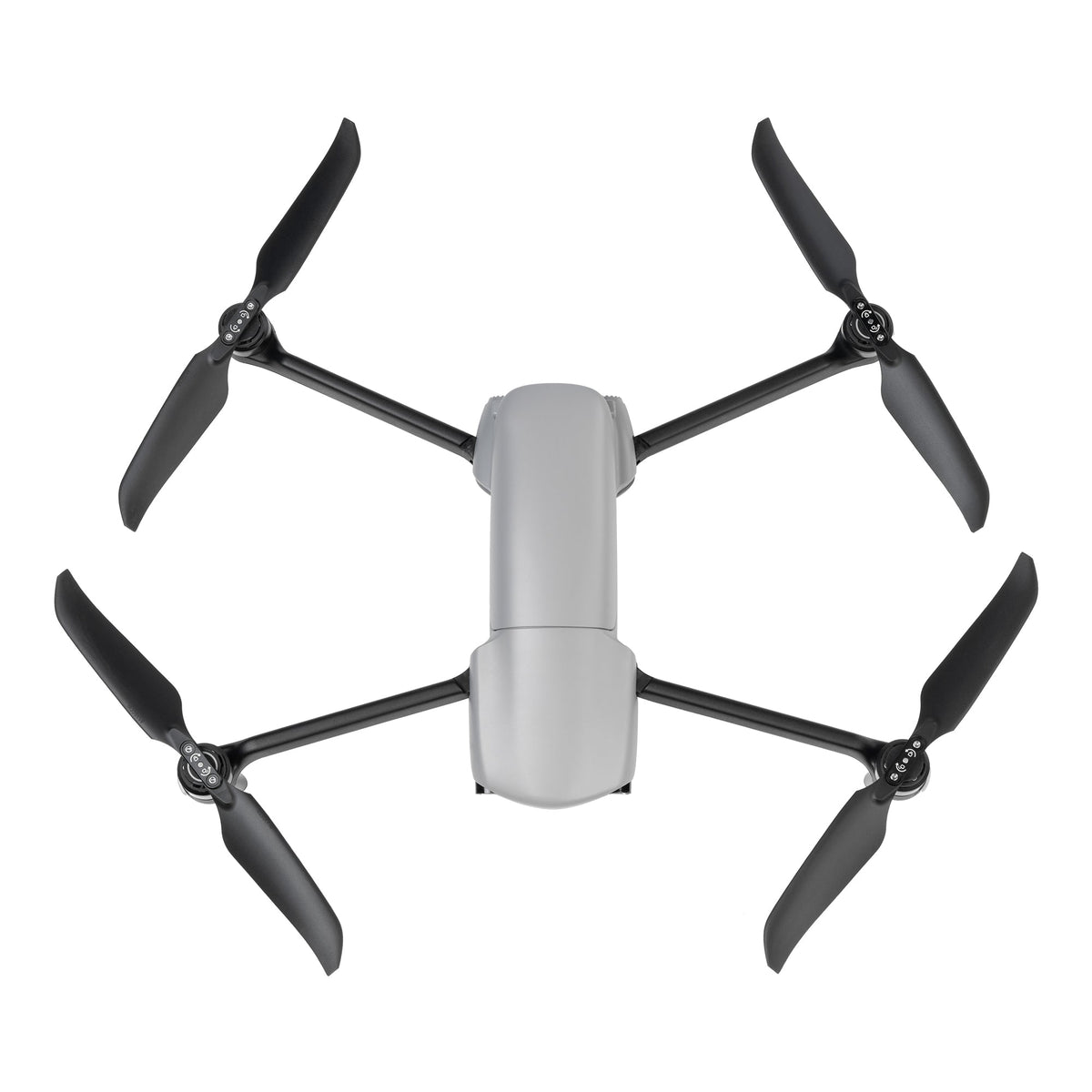

• Autel EVO Lite 6K Enterprise Drone

  Autel EVO Lite Enterprise Series, by Autel Robotics, offers multiple advantages such as a lightweight and portable design, rapid deployment, and simple control for industrial applications. The AI target recognition feature enables the aircraft to easily identify and map various target objects automatically. The three-way binocular vision obstacle avoidance provides a safe flying experience.



  Autel EVO Lite 6K Enterprise, delivers exceptional performance with its 1-inch CMOS visible-light camera, ensuring superior image quality and sensitivity. This model boasts a lightweight, portable design for rapid deployment and straightforward control. It features advanced AI target recognition for automatic object mapping and three-way binocular vision obstacle avoidance for a safer flying experience. Paired with Autel Enterprise professional flight software, it supports flexible single-person operation, making it ideal for public safety and emergency rescue applications.

  •

    Lightweight and Portable
  •

    AI Target Recognition
  •

    6K Resolution
  •

    12km Video
    Transmission Rang
  •

    Three-Way
    Binocular Vision Obstacle Avoidance
  •

    40-Minute
    Flight Endurance
  •

    Lightweight and
    Portable
  •

    AI Target
    Recognition
  •

    6K
    Resolution
  •

    12km Video
    Transmission Rang
  •

    Three-Way Vision Obstacle Avoidance
  •

    40-Minute
    Flight Endurance

  Lightweight and Portable

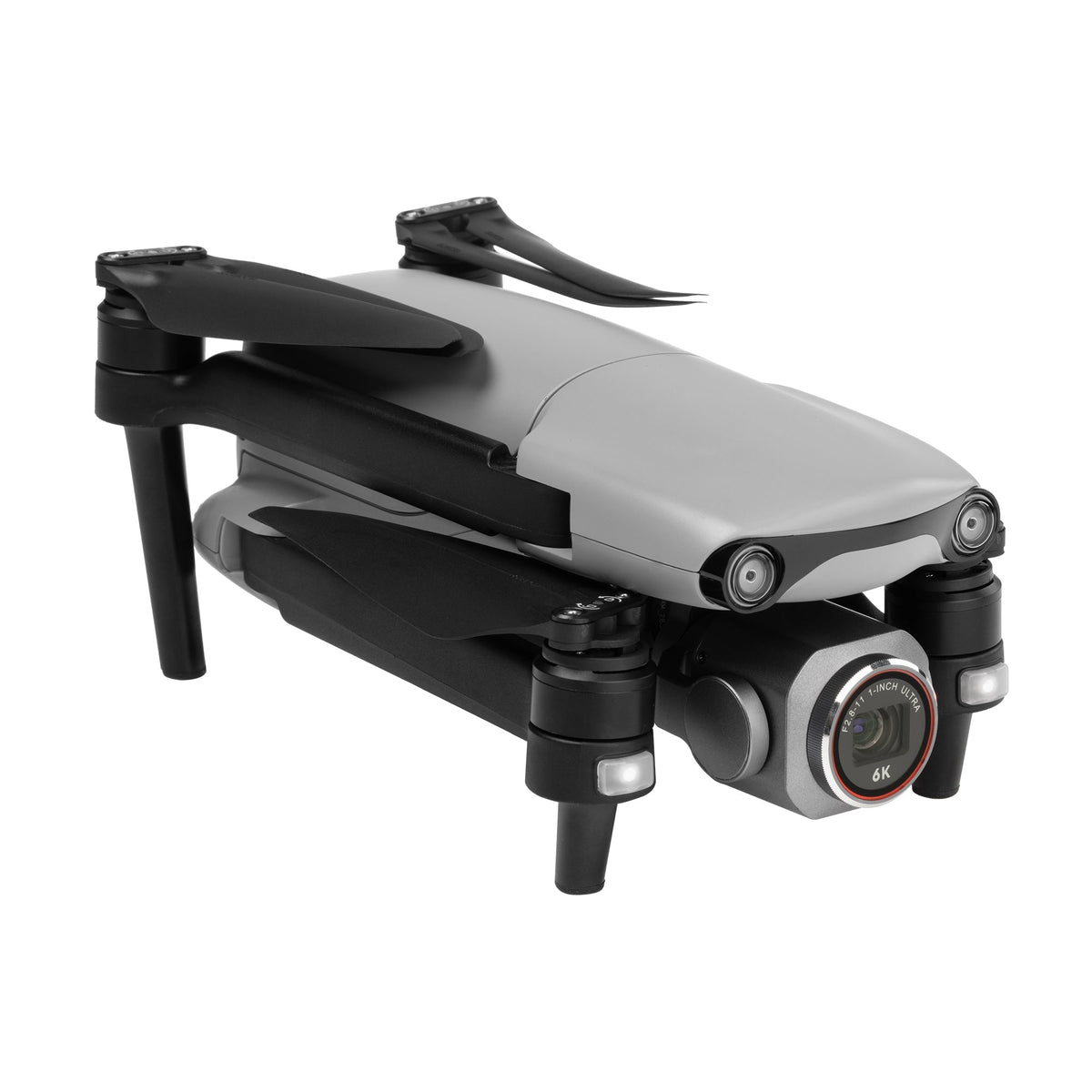

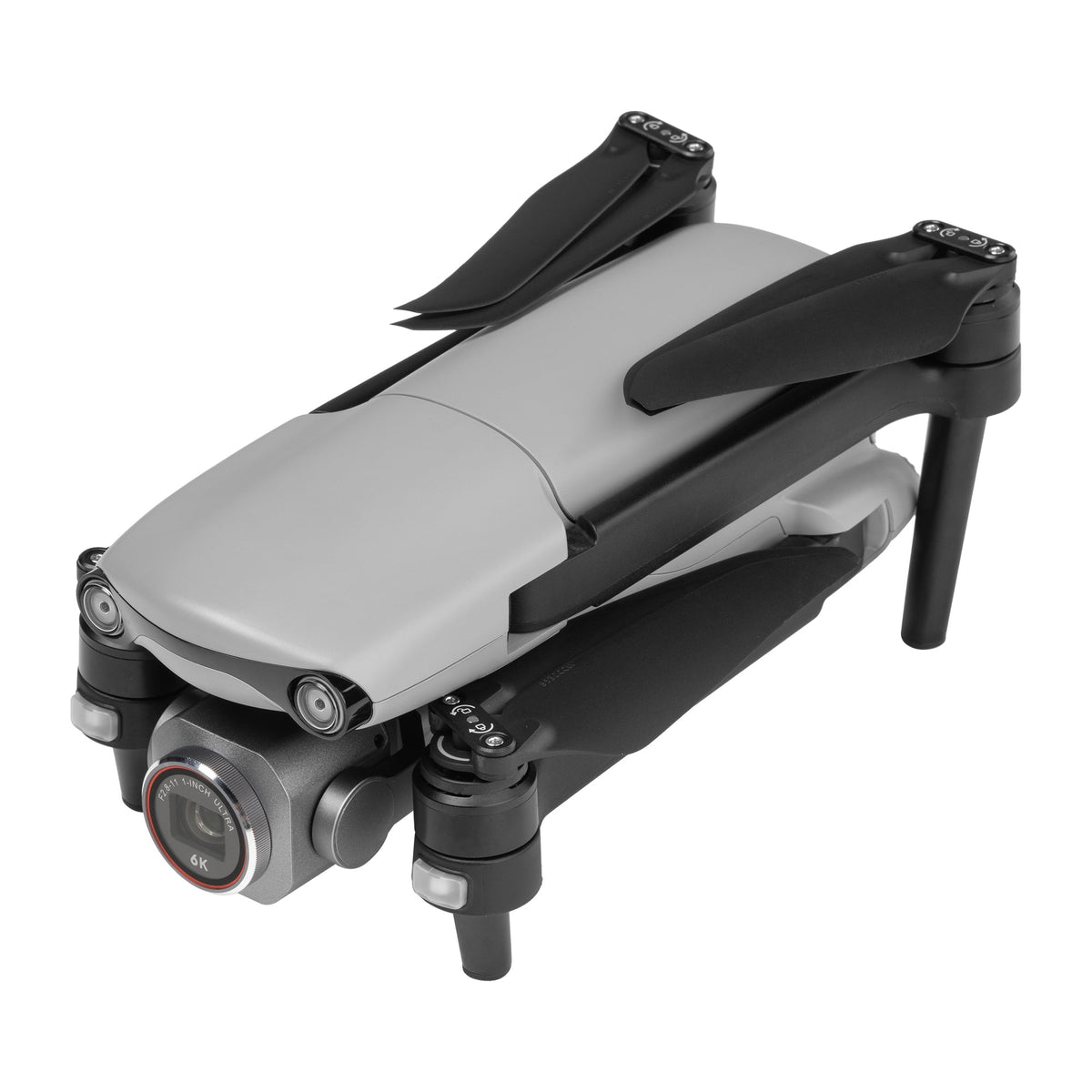

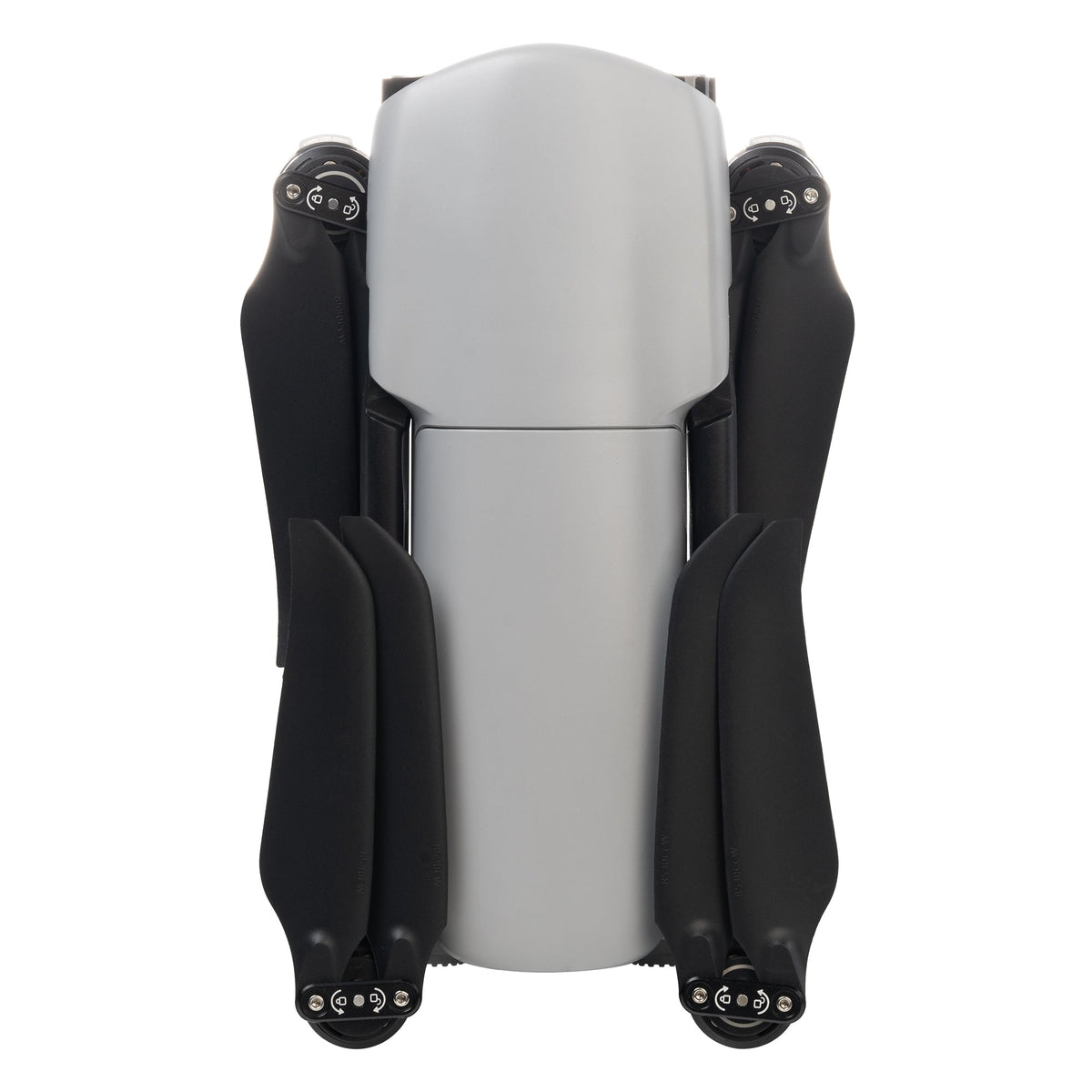

  Autel EVO Lite 6K aircraft weigh only 866 grams and have folded dimensions of just 210*123*95mm, making them easy to carry in a backpack. With a simple operation, they are ideal for efficient execution of missions by a single operator.



  Autel Enterprise App

  Autel Enterprise is a professional flight mission software designed for industry applications by Autel Robotics. It features an optimized interaction design for simple and efficient operation, an editable toolbar design for intuitive use, and integrates intelligent and professional functions to fully utilize the industry value of Autel EVO Lite 6K aircraft.


  • •
    • Split-Screen Display

      Visible light, infrared, or map support dual-channel simultaneous output on the screen, providing comprehensive information through comparison.

    •
    • Customizable Toolbar

      Customize the menu toolbar in the app for quick access to frequently used functions, meeting personalized usage needs.

    •
    • Offline Maps

      Addresses the issue of map loading failures in no-network or weak-network environments by supporting offline maps, aiding in precise flight positioning.

  • •
    • Split-Screen Display

      Visible light, infrared, or map support dual-channel simultaneous output on the screen, providing comprehensive information through comparison.

    •
    • Customizable Toolbar

      Customize the menu toolbar in the app for quick access to frequently used functions, meeting personalized usage needs.

    •
    • Offline Maps

      Addresses the issue of map loading failures in no-network or weak-network environments by supporting offline maps, aiding in precise flight positioning.

  AI Target Recognition and Positioning

  Utilizing wide-angle or infrared lenses combined with intelligent AI algorithms and a self-learning system, the aircraft can automatically recognize and locate, including people, cars, and boats, projecting their positions on the map.



  Data Security with Multiple Protections

  • •
    • Privacy Protection

      Flight logs, locations, and other user privacy data require user consent to upload.

    •
    • Encrypted Storage

      Supports AES encryption for photos, videos, and flight logs, requiring a password for access.

    •
    • Video Live Streaming

      Supports RTMP and GB28181* protocols for live streaming, allowing for remote real-time viewing and analysis.

      *The GB28181 video live streaming protocol feature is pending future updates.

  • •
    • Privacy Protection

      Flight logs, locations, and other user privacy data require user consent to upload.

    •
    • Encrypted Storage

      Autel EVO Lite Enterprise SeriesSupports AES encryption for photos, videos, and flight logs, requiring a password for access.

    •
    • Video Live Streaming

      Lite Enterprise Supports RTMP and GB28181* protocols for live streaming, allowing for remote real-time viewing and analysis.

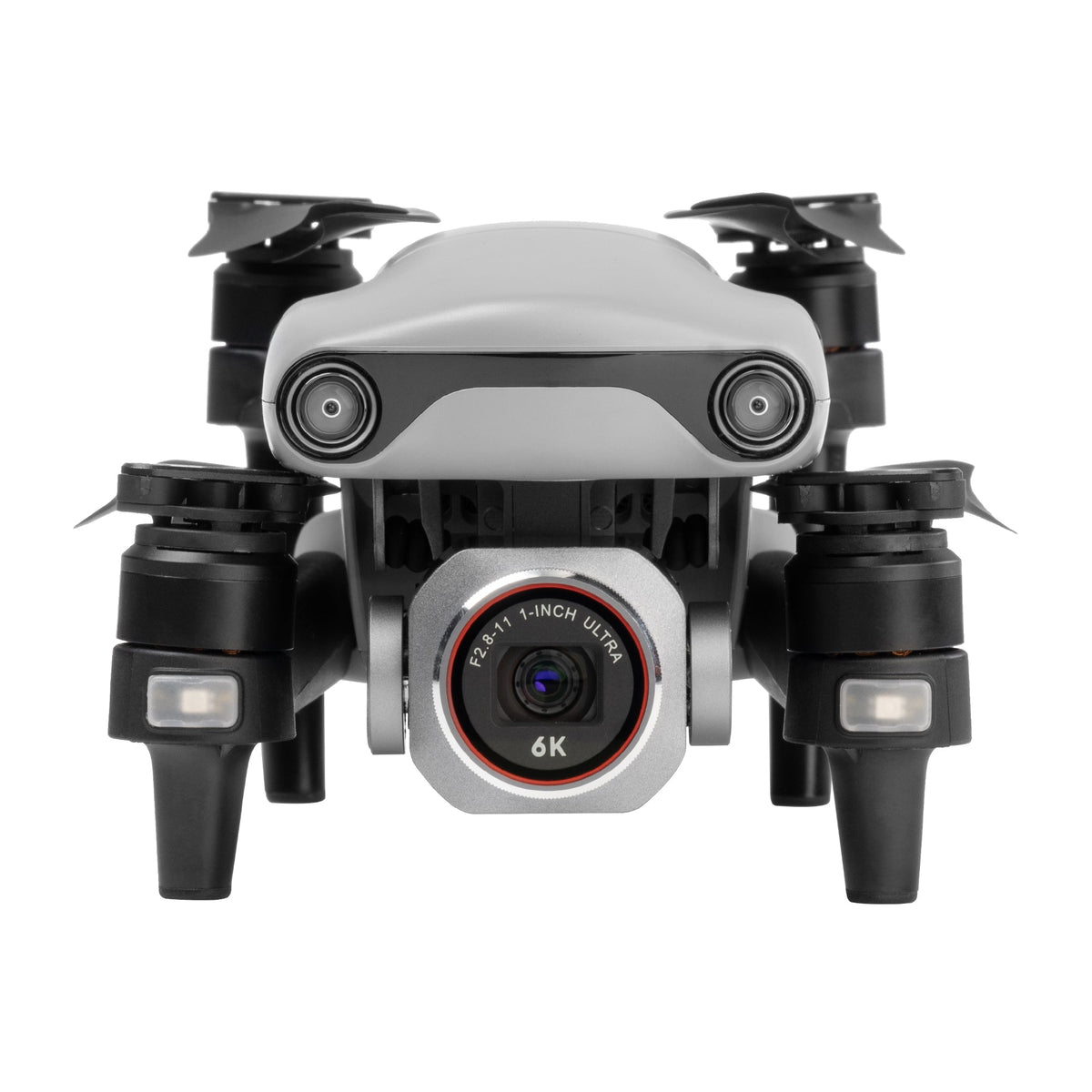

  EVO Lite 6K Enterprise

  Autel EVO Lite 6K is equipped with a 6K visible-light camera, it can still capture high-definition, low-noise images in low-light environments, providing insights into targets and empowering police enforcement, patrol inspection, search, and rescue scenarios.

  •
    • 1-inch CMOS sensor
    • 20 million pixels
    • Adjustable aperture from F2.8 to F11
    • ISO support up to 48,000 (night mode)
    • 16x digital zoom
    • Photo resolutions of 5472*3076 / 3840*2160
    • Maximum video resolution of 4K 30P
  •
    • 1-inch CMOS sensor
    • 20 million pixels
    • Adjustable aperture from F2.8 to F11
    • ISO support up to 48,000 (night mode)
    • 16x digital zoom
    • Photo resolutions of 5472*3076 / 3840*2160
    • Maximum video resolution of 4K 30P

  High-Definition Video Transmission

  Equipped with Autel SkyLink image transmission technology for a dual-signal, dual-reception system, the image transmission anti-interference capability improved, and the transmission distance reaches up to 12 kilometers. It supports 2.4GHz/5.2GHz/5.8GHz adaptive frequency hopping transmission, automatically selecting the best channel based on electromagnetic interference, providing strong anti-interference capability.


  • 12 kilometers
    Image transmission distance
  • 1080P/30FPS
    Real-time image transmission quality
  • <200 milliseconds
    Latency
  • 2.4GHz/5.2GHz/5.8GHz
    Frequency band transmission
  • 12 km
    Image transmission distance
  • 1080P/30FPS
    Real-time image transmission quality
  • 2.4GHz/5.2GHz
    5.8GHz
    Frequency band transmission
  • <200 ms
    Live Data Transfer Latency

  Visual Perception System

  The drone is equipped with wide-angle vision sensors at the front, back, and bottom, ensuring reliable flight safety.



  SDK Ecosystem

  •
    •
      Mobile SDK

    • The open Mobile SDK provides efficient, versatile, and easy-to-use control and service interfaces, enhancing development efficiency and enabling the creation of custom solution scenarios.

  •
    • Mobile SDK

    • Open UX SDK (iOS/Android) can directly call up the ready-made interactive interface.

  Flight Performance

  • 40 minutes
    of endurance
  • 18 m/s
    Maximum horizontal flight speed of
  • 3000 meters
    Maximum takeoff altitude of


  • 40 minutes
    of endurance
  • 18 m/s
    Maximum horizontal flight speed
  • 3000 meters
    Maximum takeoff altitude of



  Accessories

  • •
    • EVO Lite Multi-Charger - $59.00
      Charge up to 3 EVO Lite batteries: EVO Lite Multi-charger featured 3 battery ports that can charge up to 3 EVO Lite/ Lite+ Plus batteries simultaneously. Sequential-charging mode: The batteries will be fully charged one by one according to their power levels, from high to low.
    •
    • EVO Lite Battery - $159.00
      The Autel Robotics EVO Lite Intelligent Flight Battery is a spare or replacement battery for the EVO Lite series of drones. The EVO Lite Battery boasts up to 40 minutes of flight time thanks to its 6,175mAh, 11.13v lithium polymer battery technology. This added flight time is about 30 percent more than the competition.
    •
    • EVO Lite On-The-Go Bundle - $429.00
      The Autel EVO Lite+ On the Go Bundle is an accessory bundle that includes many essentials for the EVO Lite series including a shoulder bag, multi-charger, 2 spare batteries, 2 pairs of propellers, and a set of ND (Neural Density) filters. Everything you need to make the most of your new Lite+ drone.
    •
    • EVO Lite+ ND Filter - $89.00
      The Autel EVO Max series offers a versatile multi-charger, designed to provide convenient and efficient charging solutions. With its ability to simultaneously charge the smart controller, batteries, and even mobile phones, the Autel EVO Max multi-charger provides a comprehensive charging solution for users. Its emphasis on safety, multi-device support, and efficiency make it an ideal accessory for EVO Max series users.
  • •
    • EVO Lite Multi-Charger - $59.00
      Charge up to 3 EVO Lite batteries: EVO Lite Multi-charger featured 3 battery ports that can charge up to 3 EVO Lite/ Lite+ Plus batteries simultaneously. Sequential-charging mode: The batteries will be fully charged one by one according to their power levels, from high to low.


    •
    • EVO Lite Battery - $159.00
      The Autel Robotics EVO Lite Intelligent Flight Battery is a spare or replacement battery for the EVO Lite series of drones. The EVO Lite Battery boasts up to 40 minutes of flight time thanks to its 6,175mAh, 11.13v lithium polymer battery technology. This added flight time is about 30 percent more than the competition.


    •
    • EVO Lite On-The-Go Bundle - $429.00
      The Autel EVO Lite+ On the Go Bundle is an accessory bundle that includes many essentials for the EVO Lite series including a shoulder bag, multi-charger, 2 spare batteries, 2 pairs of propellers, and a set of ND (Neural Density) filters. Everything you need to make the most of your new Lite+ drone.


    •
    • EVO Lite+ ND Filter - $89.00
      The Autel EVO Max series offers a versatile multi-charger, designed to provide convenient and efficient charging solutions. With its ability to simultaneously charge the smart controller, batteries, and even mobile phones, the Autel EVO Max multi-charger provides a comprehensive charging solution for users. Its emphasis on safety, multi-device support, and efficiency make it an ideal accessory for EVO Max series users.

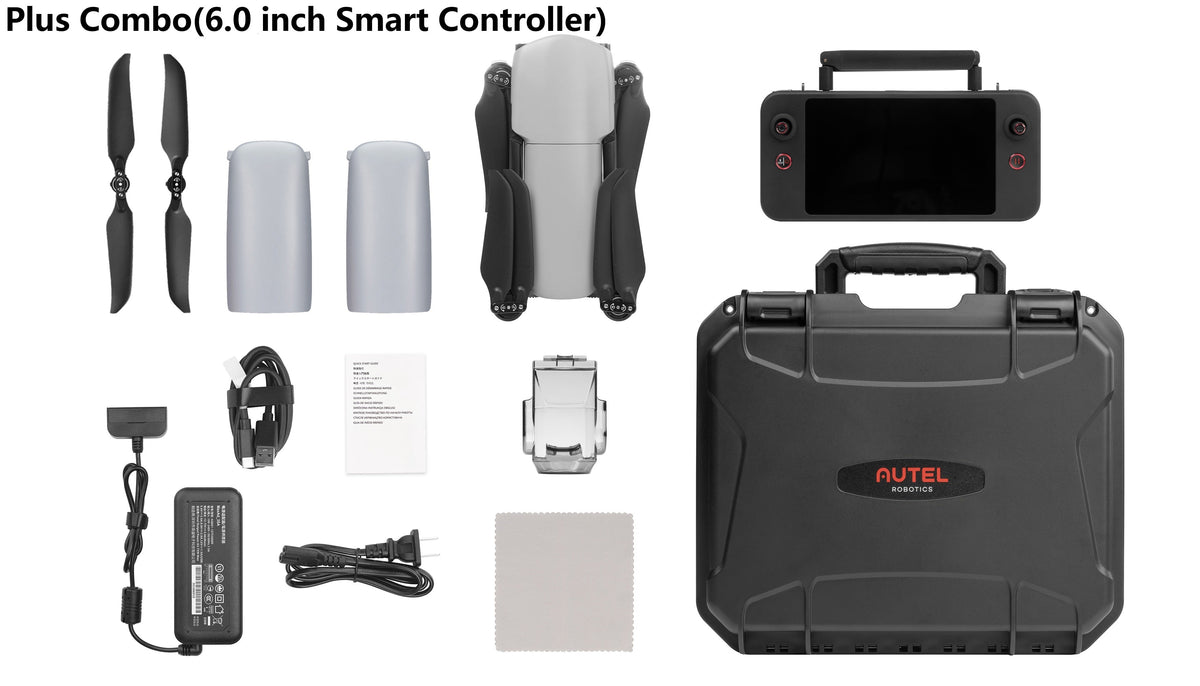

  Autel EVO Lite 6K Enterprise Plus Combo Package List



  Applications

  • •
    • Law Enforcement
    •
    • Security Patrol
    •
    • Emergency Rescue
  • •
    • Law Enforcement
    •
    • Security Patrol
    •
    • Emergency Rescue

  EVO Lite Plus vs EVO Lite 6K vs EVO II Pro V3


•

• Autel Robotics EVO Lite 6K Enterprise Teachnical Specifications



  Aircraft

  Weight	866 g
  Maximum takeoff weight	866 g
  Dimensions	Folded: 210×123×95mm Unfolded: 433×516×95mm
  Max. rotation speed	8000 rpm
  Wheelbase	368 mm
  Maximum ascent speed	Slow:3 m/s Smooth:3 m/s Standard: 5 m/s Ludicrous: 6 m/s
  Maximum descent speed	Slow:3 m/s Smooth:2 m/s Standard: 3 m/s Ludicrous: 4 m/s
  Maximum horizontal flight speed (no wind near sea level)	Slow :3 m/s Smooth:5 m/s Standard: 10 m/s Ludicrous: 18 m/s
  Maximum Service Ceiling Above Sea Level	3000 meters
  Maximum flight altitude	800 meters (Altitude limit in the App)
  Maximum flight time (no wind)	40 minutes
  Maximum flight mileage	24 km
  Maximum hover time (no wind)	38 minutes
  Maximum wind resistance level	Fresh breeze
  Maximum tilt angle	Slow: 15° Smooth: 30° Standard: 30° Ludicrous: 33°
  Maximum rotation angular speed	Smooth: 60°/s Standard: 120°/s Ludicrous: 200°/s
  Working temperature	0~40℃
  Battery hot replacement	not support
  Internal storage	Onboard storage: 4GB (support microSD card of up to 256GB)
  GNSS	GPS/Galileo/GLONASS
  Hover accuracy	Vertically: ±0.1 meters (when visual positioning is working normally) ±0.5 meters (when GNSS is working normally) Horizontally: ±0. 3 meters (when visual positioning is working normally) ± 1.5 meters (when GNSS is working normally)



  Image Transmission

  Operating Frequency	2.4G: 2.400 – 2.476 GHz*; 2.400 – 2.4835 GHz** 5.2G: 5.15 - 5.25 GHz*** 5.8G: 5.725 - 5.829 GHz*, 5.725 - 5.850GHz** *Only applies to SRRC regions **Only applies to FCC, ISED, CE, UKCA and RCM regions ***Only applies to FCC regions Note: Some frequencies are only available in some regions and some frequencies are only allowed for indoor use. Check local laws and regulations for details.
  Maximum signal effective distance (No interference, no obstruction)	FCC: 12 kilometers CE: 6 kilometers
  Effective transmitter power ( EIRP)	2.4G: ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC) 5.8G: ≤30dBm(FCC/SRRC/ISED/RCM); ≤14dBm(CE)



  EVO Lite 6K Enterprise Aircraft Gimbal Camera

  Image sensor	1 inch CMOS, 20 million pixels
  Lens	Field of view: 82° Focal length: 29 mm Aperture: f/2.8-f/11 Focus distance: 0.5 meter ~ ∞
  ISO range	Video: ISO100 ~ ISO6400 Photo: ISO100 ~ ISO6400 Night scene mode: Maximum video ISO48000
  Shutter speed	Photo mode: 1/8000 ~ 8 seconds Others: 1/8000 ~ 1/30 seconds
  Defog mode	Support
  Zoom	1 - 16x digital zoom Lossless zoom: 4K: 1.3 times at most; 1080p: 3 times at most
  Maximum photo size	5472×3076(16:9) 3840×2160 (16:9)
  Photo format	JPG
  Photo shooting mode	Single shooting
  Video resolution	3840×2160 P30 1920×1080 P30
  Video format	MP4/MOV
  Video coding format	H.265/H.264
  Video maximum bit rate	120Mbps
  Support file system	FAT32/exFAT



  EVO Lite 6K Enterprise Gimbal

  Mechanical scope	Pitch: -135°~45° Roll: -45°~45° Yaw: -90°~90°
  Controllable rotation range	Pitch: -90°~30°
  Stable system	Three-axis stabilization
  Maximum control speed (pitch)	100°/s
  Angualr vibration range	±0.003°



  Autel Smart Controller SE V2

  Material	PC+ABS
  Dimensions	226.3×137.7×31.5 mm (antennas folded) 226.3×215.4×31.5 mm (antennas unfolded)
  Weight	607 g
  Operating Temperature	-10°C to 40°C
  Storage Temperature	+15°C ~ +25°C (within a year) 0°C ~ +30°C (within three months) -20°C ~ +45°C (within a month)
  Protection Rating	IP43
  Internal Storage	24GB
  MicroSD Extension	Supported
  Operating System	Based on Android 6.0.1
  Application Installation	Supports the installation of third-party Android apps
  USB -C	Charging: supports PD/QC fast charging, up to 65W
  USB -A	USB2.0
  GNSS	GPS+Galileo+BeiDou+GLONASS
  Wi-Fi Protocol	802.11a/b/g/n/ac Supports 2×2 MIMO Wi-Fi
  Wi-Fi Operating Frequency	2.4G: 2.400 – 2.476GHz*, 2.400 – 2.4835GHz** 5.8G: 5.725 - 5.829GHz*, 5.725 - 5.850GHz** *Only applies to SRRC regions **Only applies to FCC, ISED and CE regions Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations.
  Wi-Fi Effective Isotropic Radiated Power (EIRP)	2.4G: ≤30dBm (FCC/ISED); ≤20dBm(CE/SRRC) 5.8G: ≤30dBm (FCC/SRRC/ISED);≤14dBm (CE)



  Autel Smart Controller SE V2 - Image Transmission

  Antenna	Dual antennas, 1T2R, detachable design
  Operating Frequency	900M： 902 - 928MHz* 2.4G： 2.400 – 2.476GHz**，2.400 – 2.4835GHz*** 5.8G： 5.725 - 5.829GHz**，5.725 - 5.850GHz*** *Only applies to FCC and ISED regions **Only applies to SRRC regions ***Only applies to FCC, ISED and CE regions Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations.
  Effective Isotropic Radiated Power (EIRP)	900M： ≤30dBm (FCC/ISED) 2.4G： ≤30dBm (FCC/ISED); ≤20dBm(CE/SRRC) 5.8G： ≤30dBm (FCC/SRRC/ISED); ≤14dBm(CE)
  Maximum Transmission Distance (Without Interference and Blocking)	FCC: 15 km CE/SRRC: 8 km



  Autel Smart Controller SE V2 - Display

  Resolution	1440×720
  Refresh Rate	60Hz
  Touch Control	Supports 10-point touch



  Autel Smart Controller SE V2 - Battery

  Battery Type	Li-Po
  Rated Capacity	1900 mAh
  Voltage	7.7V
  Battery Energy	14.63 Wh
  Charging Time	About 90 minutes
  Battery Endurance	2 hours (Max brightness) 3 hours (50% brightness)
  Battery Replacement	Supported



  Smart Battery

  Operating Temperature	0~+40℃
  Battery Type	LiPo 3S
  Rated Capacity	6175 mAh
  Battery Energy	68.7 Wh
  Voltage	11.13 V
  Charging Voltage Limit	12.75V
  Rated Charging Power	63.75W
  Rated Charging Power	78W
  Weight	309g
  Battery charging temperature	+5-+45℃ (When the battery temperature is below 5℃, the battery stops charging. When the battery temperature is above +45℃, the battery stops charging.)



  Battery Storage

  Ideal storage environment	+ 22℃ ~ +28℃
  Storage temperature and humidity	- 10℃ ~ +30℃, 65 ± 20%RH



  Battery Charger

  power input	100-240V ~ 50/60 Hz, 1.5 A
  Output port	Battery charging interface/USB-A
  Battery charging interface	12.75V⎓5A
  USB charging port	5V⎓3A, 9V⎓2A, 12V⎓1.5A
  Rated power	63.75W Max

• Autel EVO Lite 6K Enterprise Plus ComboPackage List
