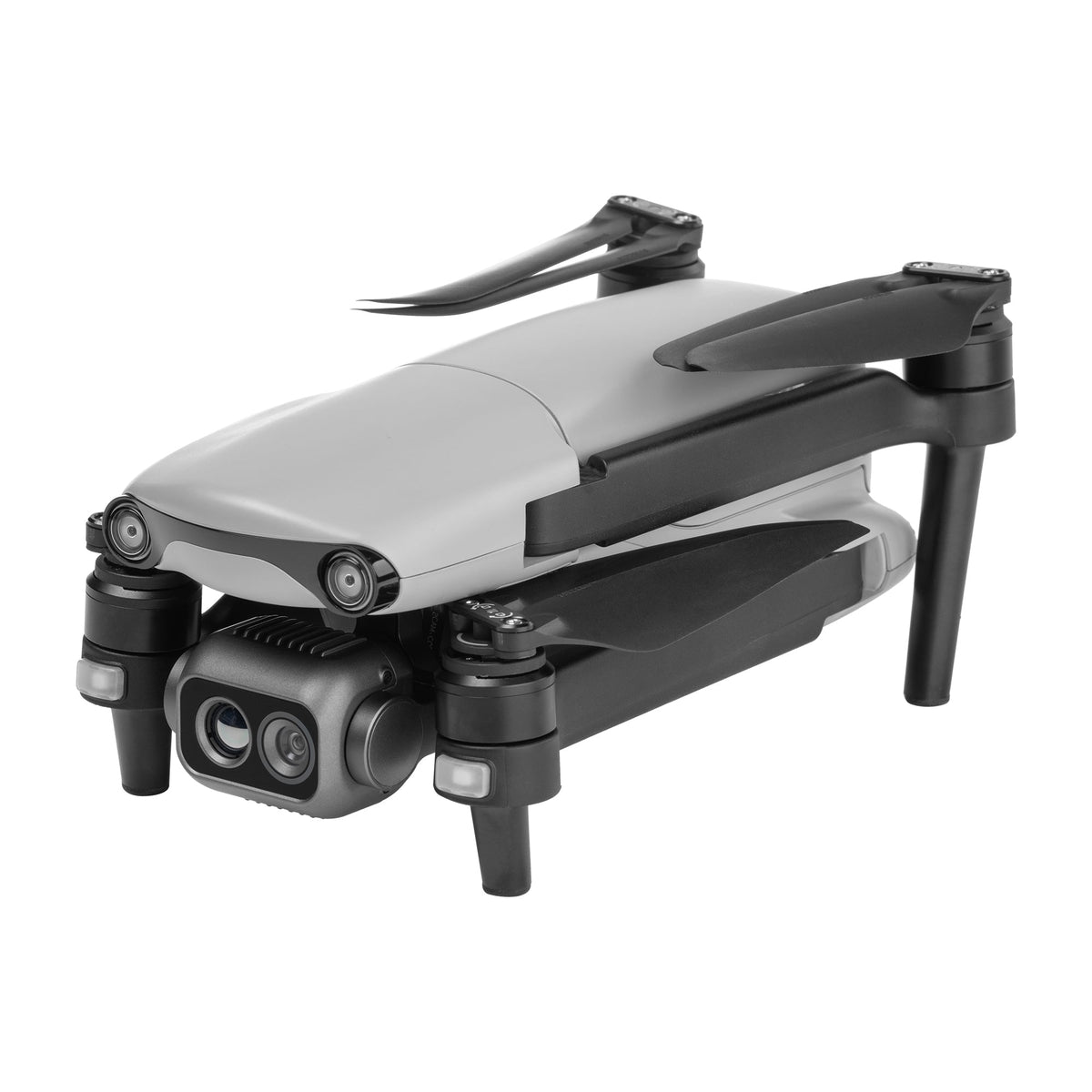

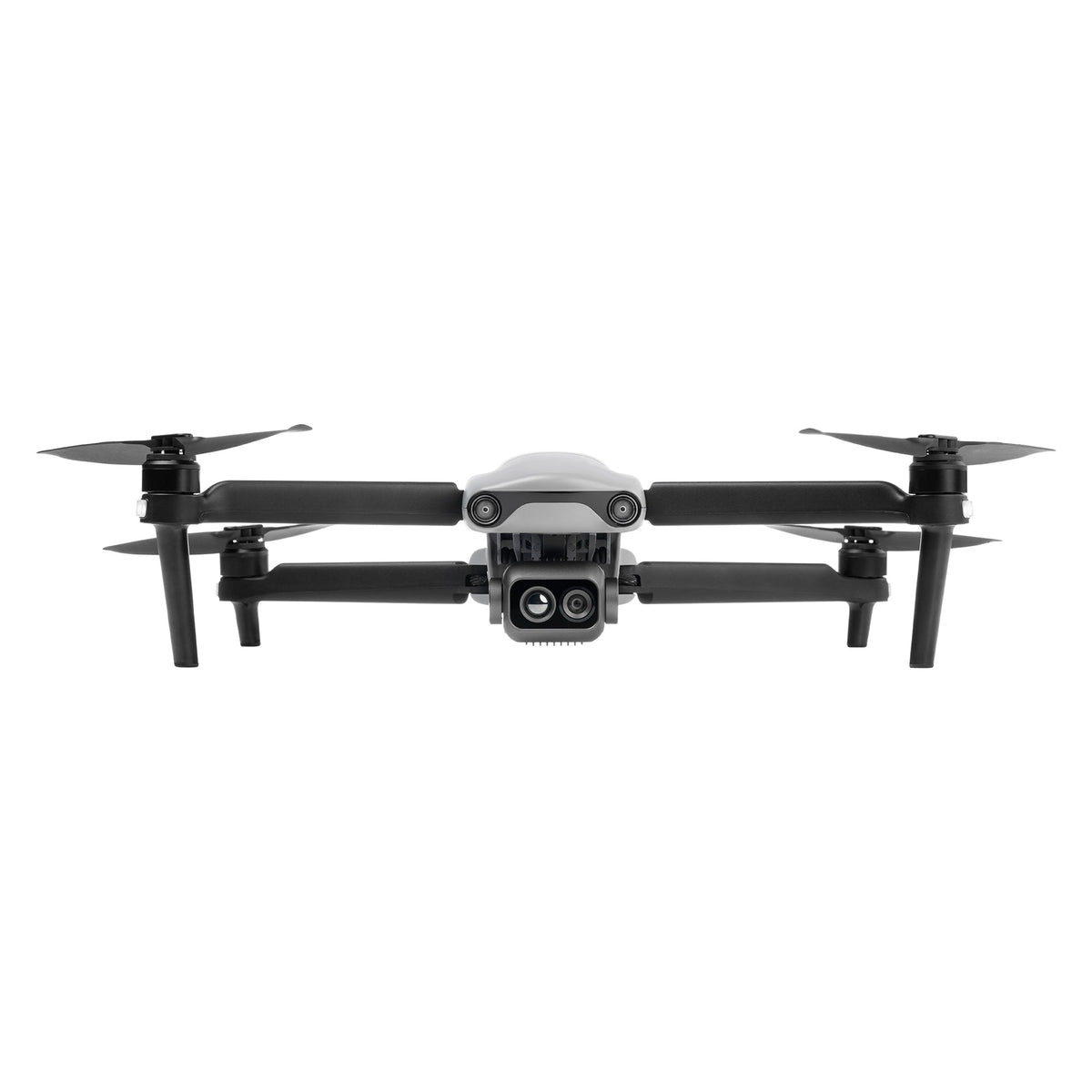

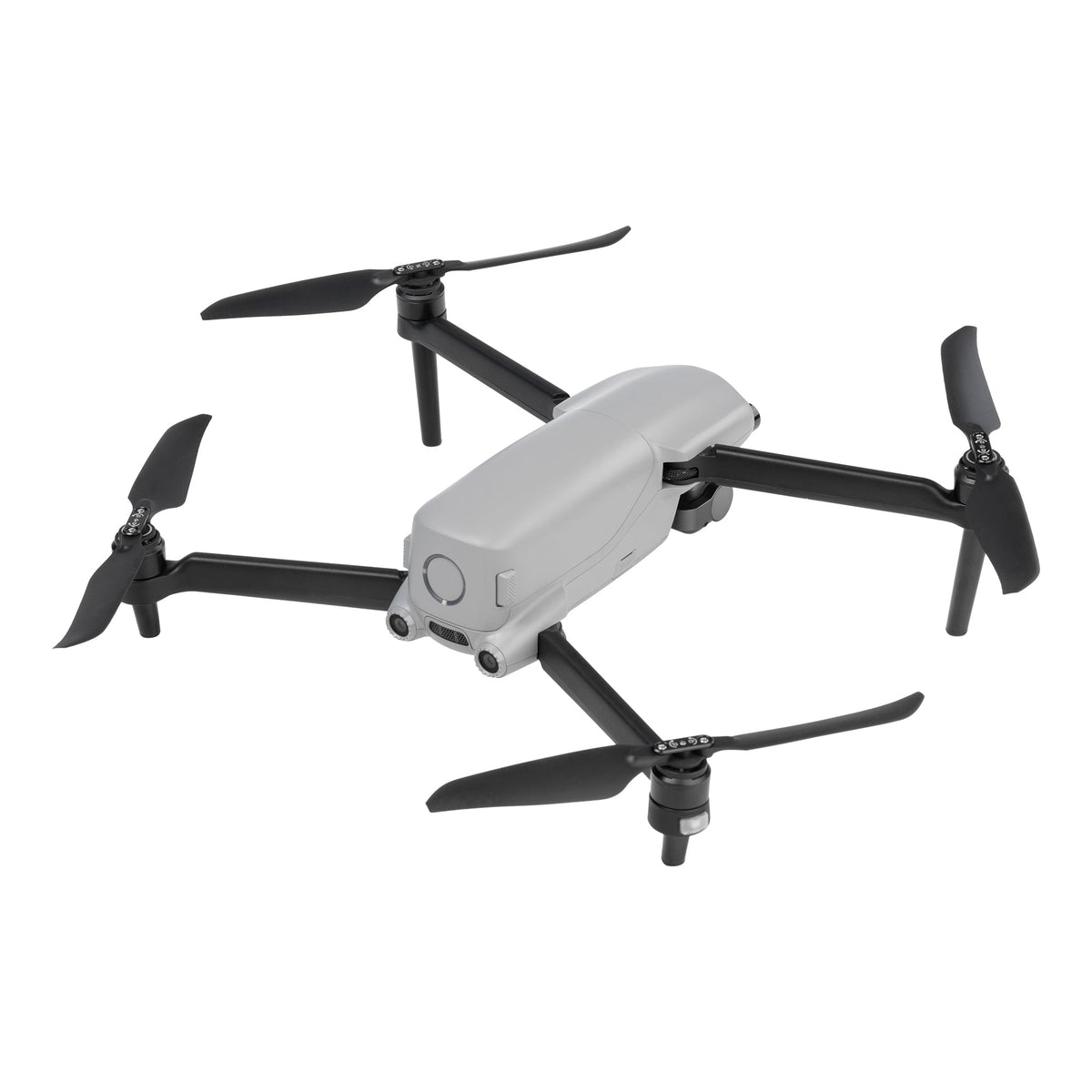

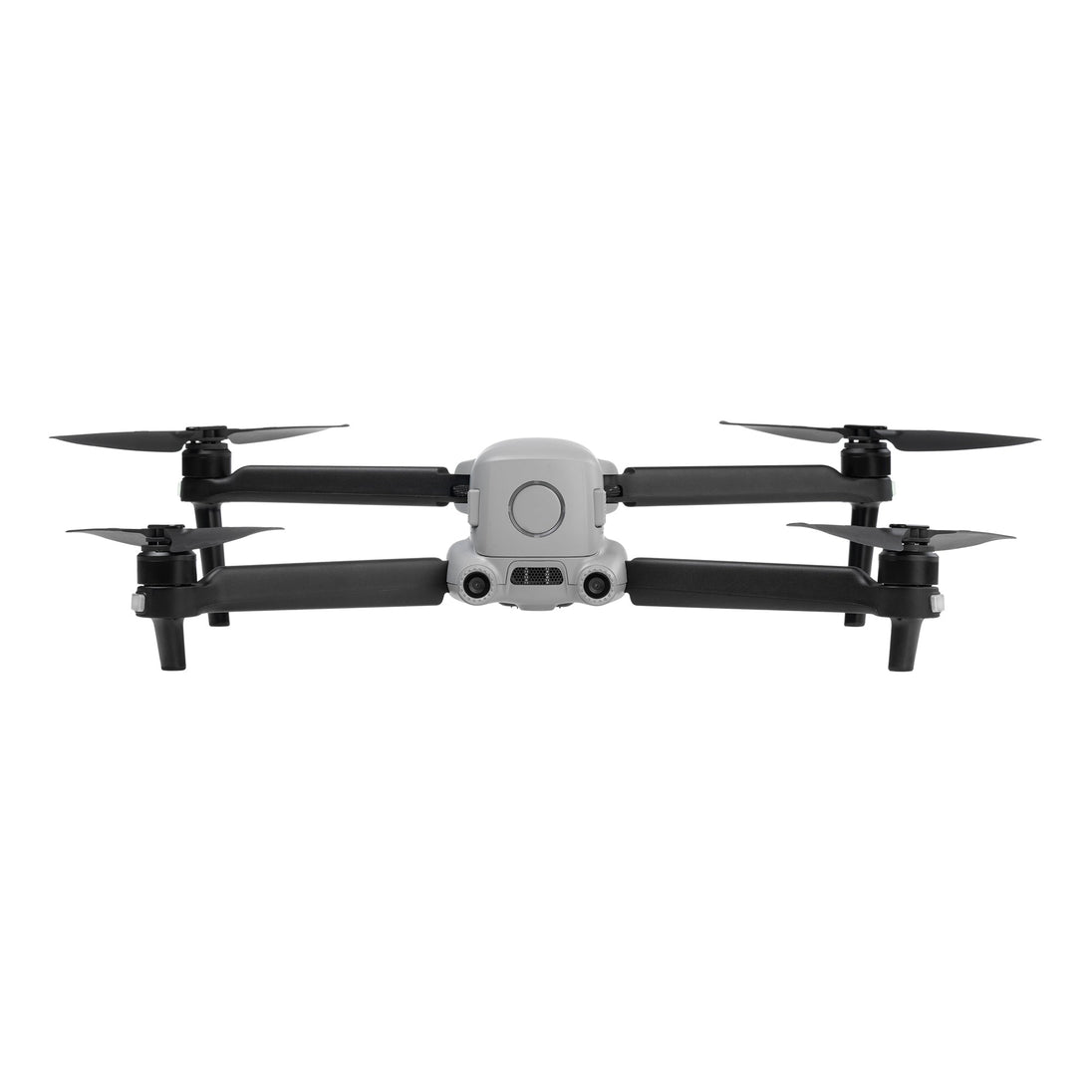

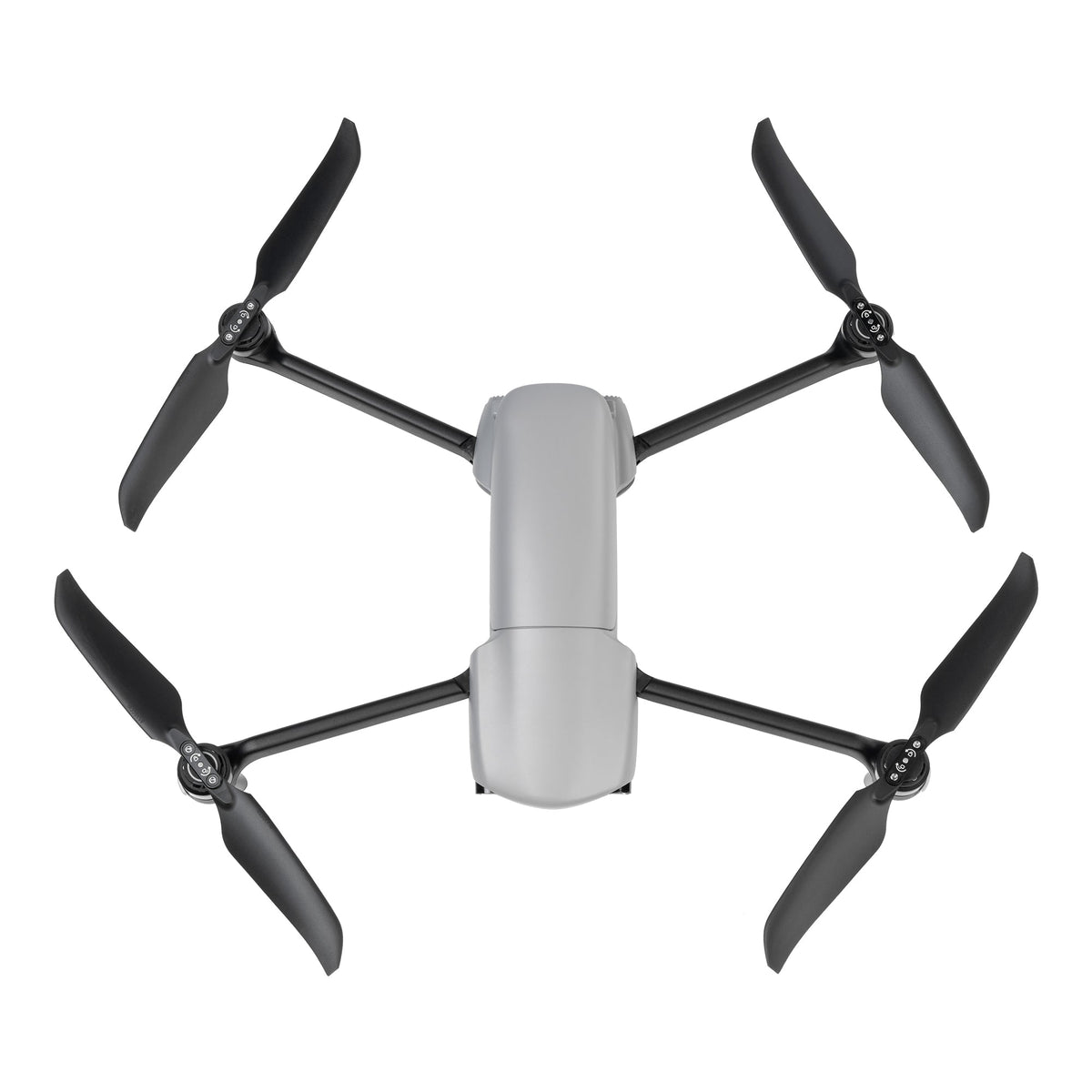

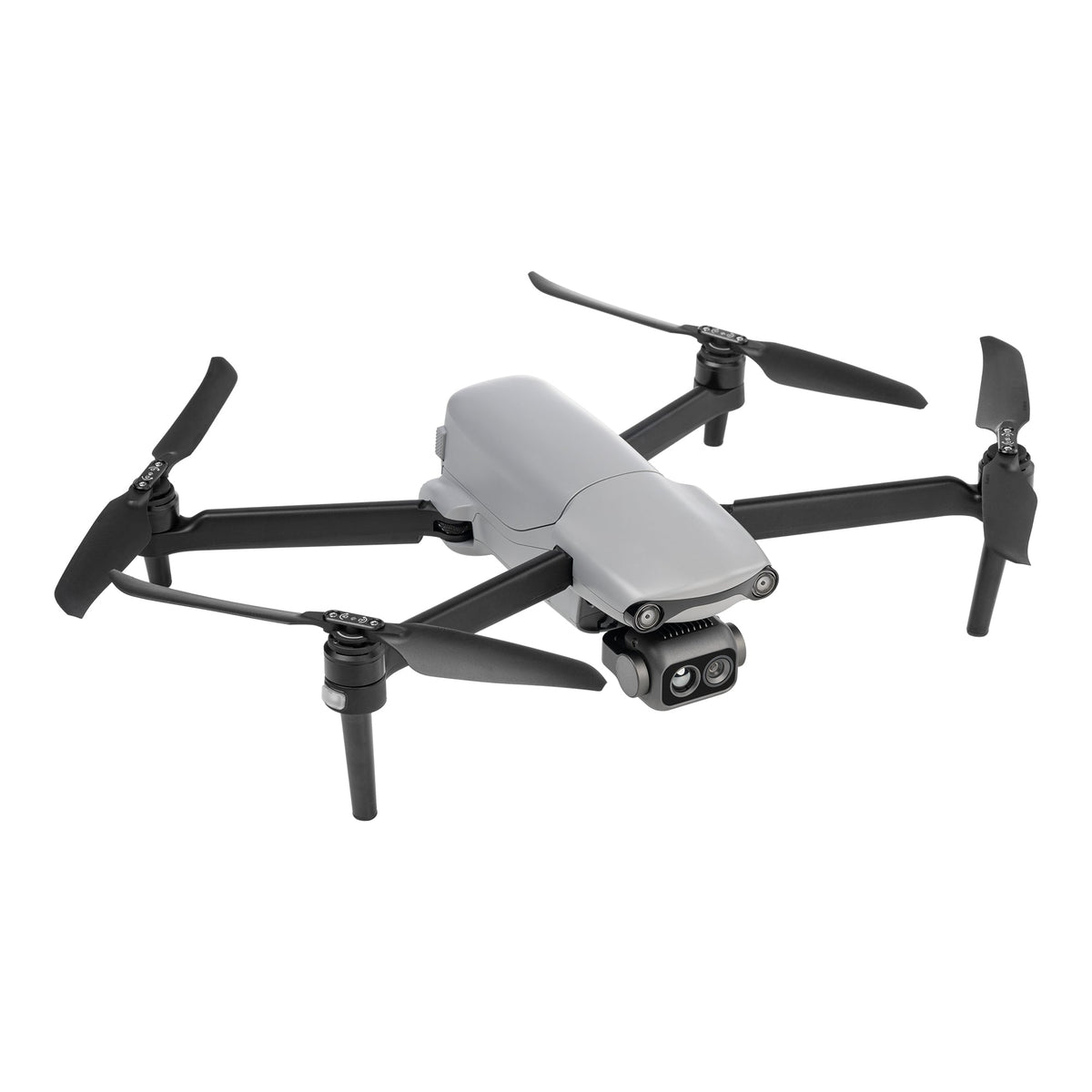

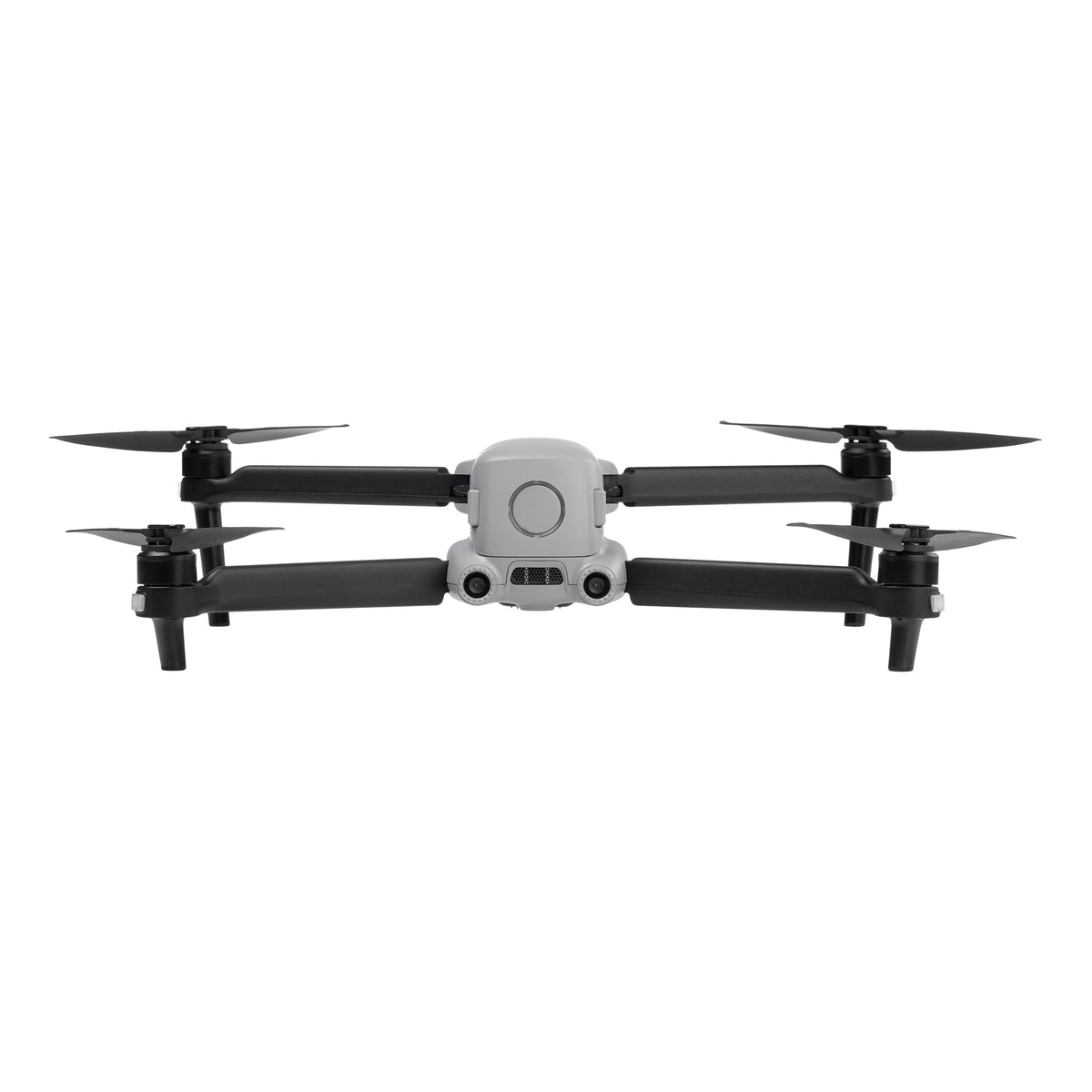

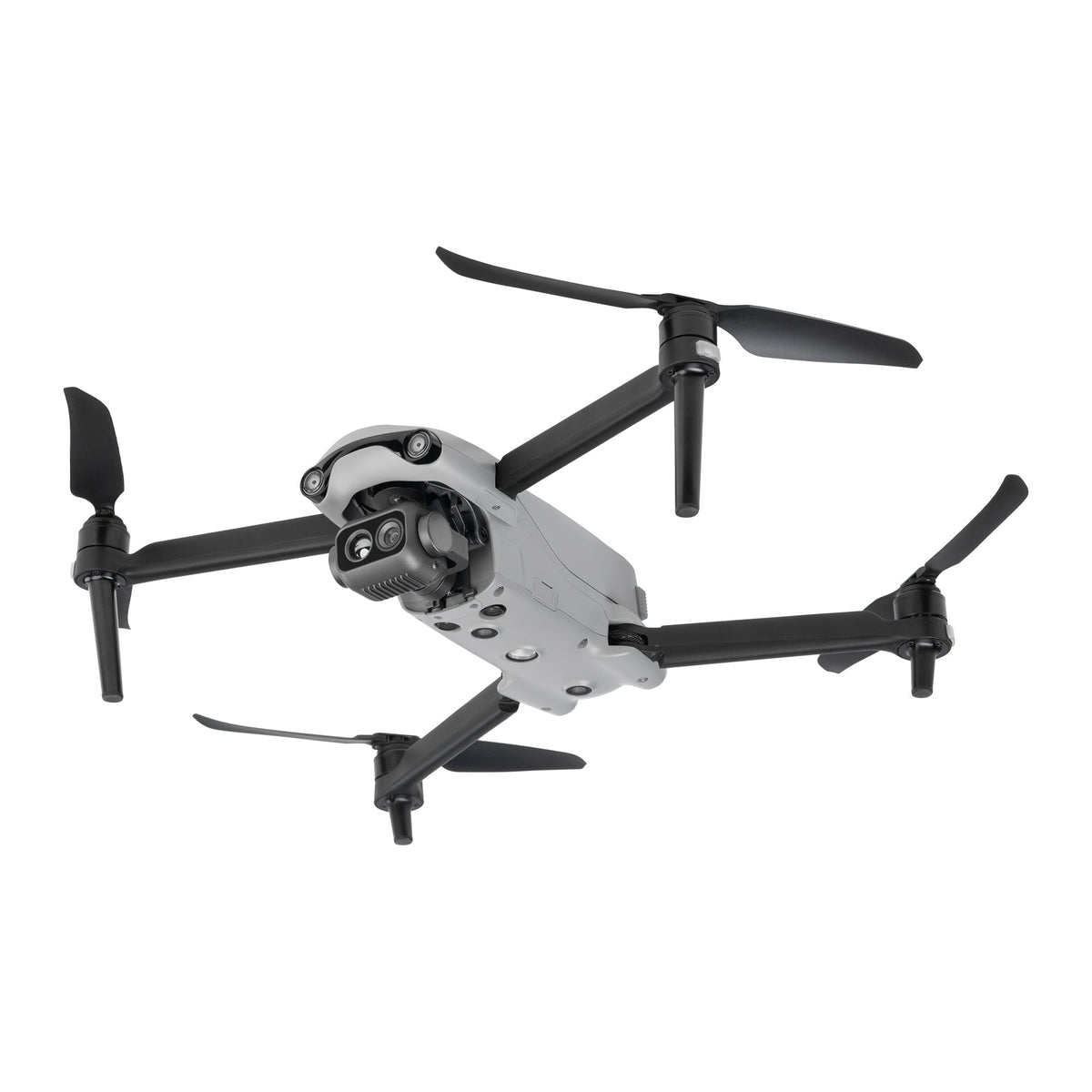

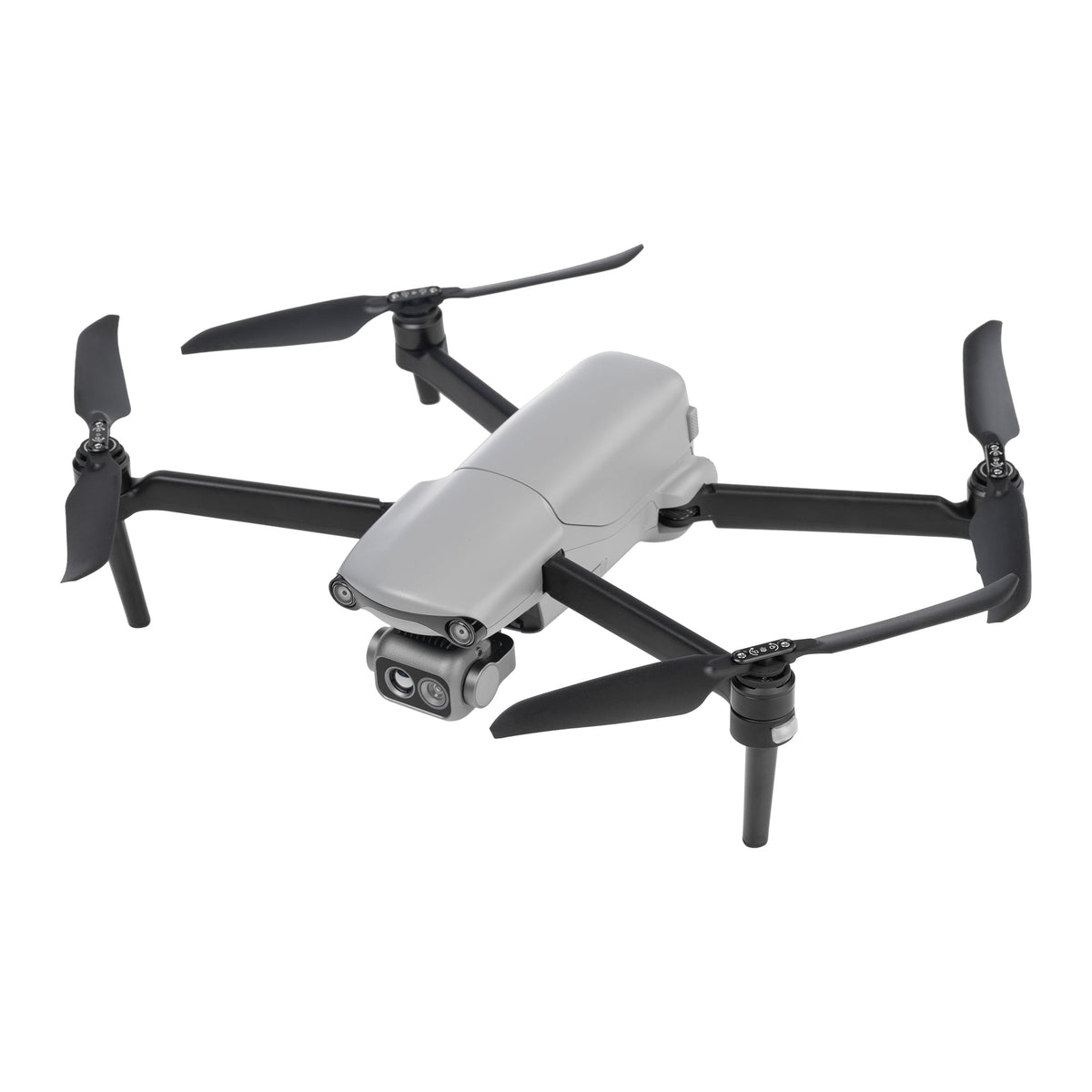

EVO Lite 640T Enterprise

• Combines visible-light and thermal imaging cameras for enhanced operational decision-making
• Thermal imaging sensor has a resolution of up to 640x512
• 9.1mm lens and 16x digital zoom capable of recognizing subjects at up to 100m
• Radiometric Temperature Detection
• AI target recognition automates identification and mapping of various objects
• Industry-leading 40 minutes flight time
• Transmission range of 7.4 miles

• Lightweight and Portable
• Easy Operation
• High-Precision Visual Navigation
• Dual-Binocular Obstacle Avoidance in Three Directions

[keyfeatures]

• Overview
• Comparison
• Specification
• Package
• Downloads

• Autel EVO Lite 640T Enterprise

  Autel EVO Lite Enterprise Series, by Autel Robotics, offers multiple advantages such as a lightweight and portable design, rapid deployment, and simple control for industrial applications. The AI target recognition feature enables the aircraft to easily identify and map various target objects automatically. The three-way binocular vision obstacle avoidance provides a safe flying experience.



  2025 Autel EVO Lite 640T Enterprise features a dual gimbal system, with a visible-light camera providing clear and detailed images, while the thermal-imaging camera aids in decision-making during operations. Paired with the Autel Enterprise professional flight software, Lite 640T offers easy operation, user-friendly interaction, flexible single-person deployment, and efficient application in scenarios such as public safety and emergency rescue.

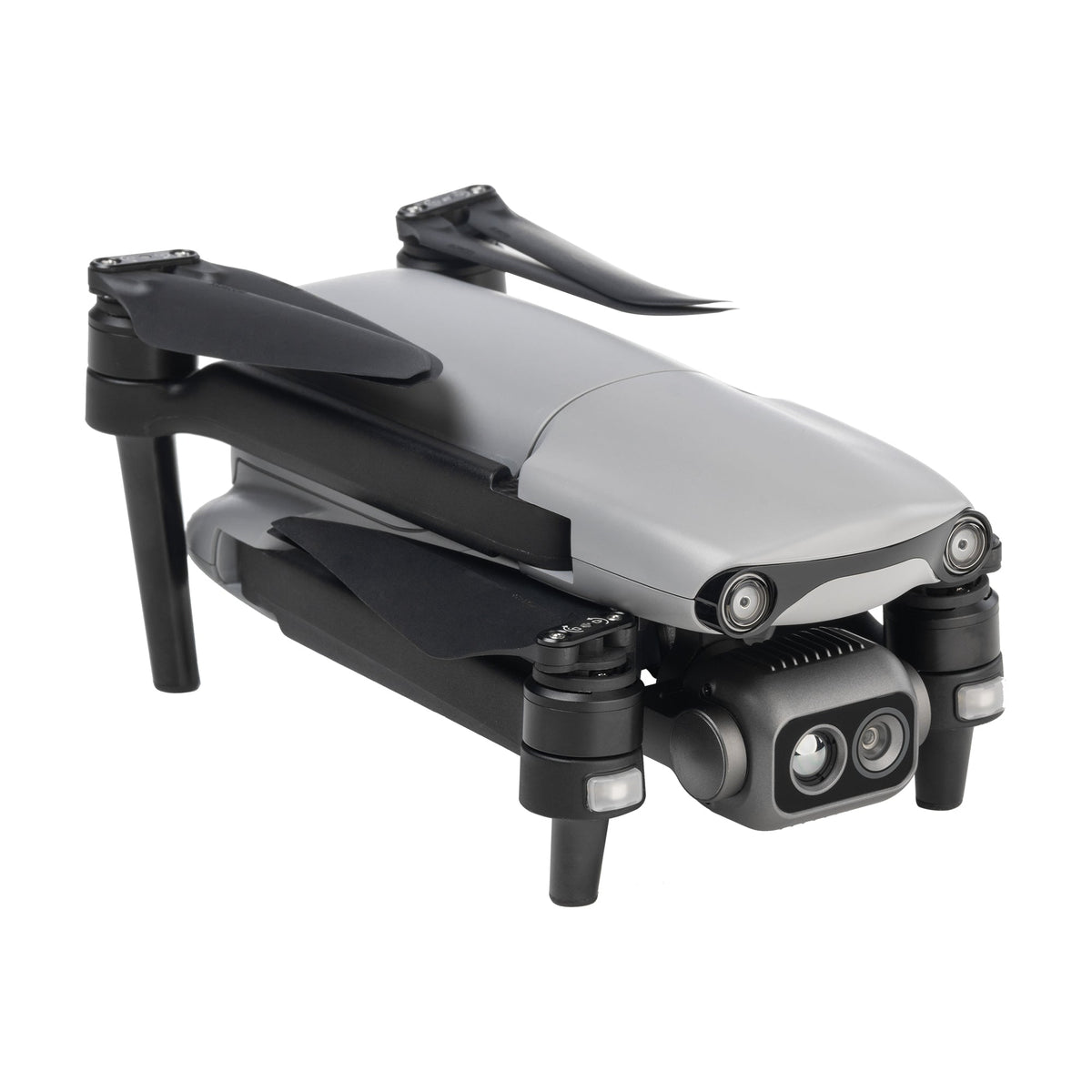

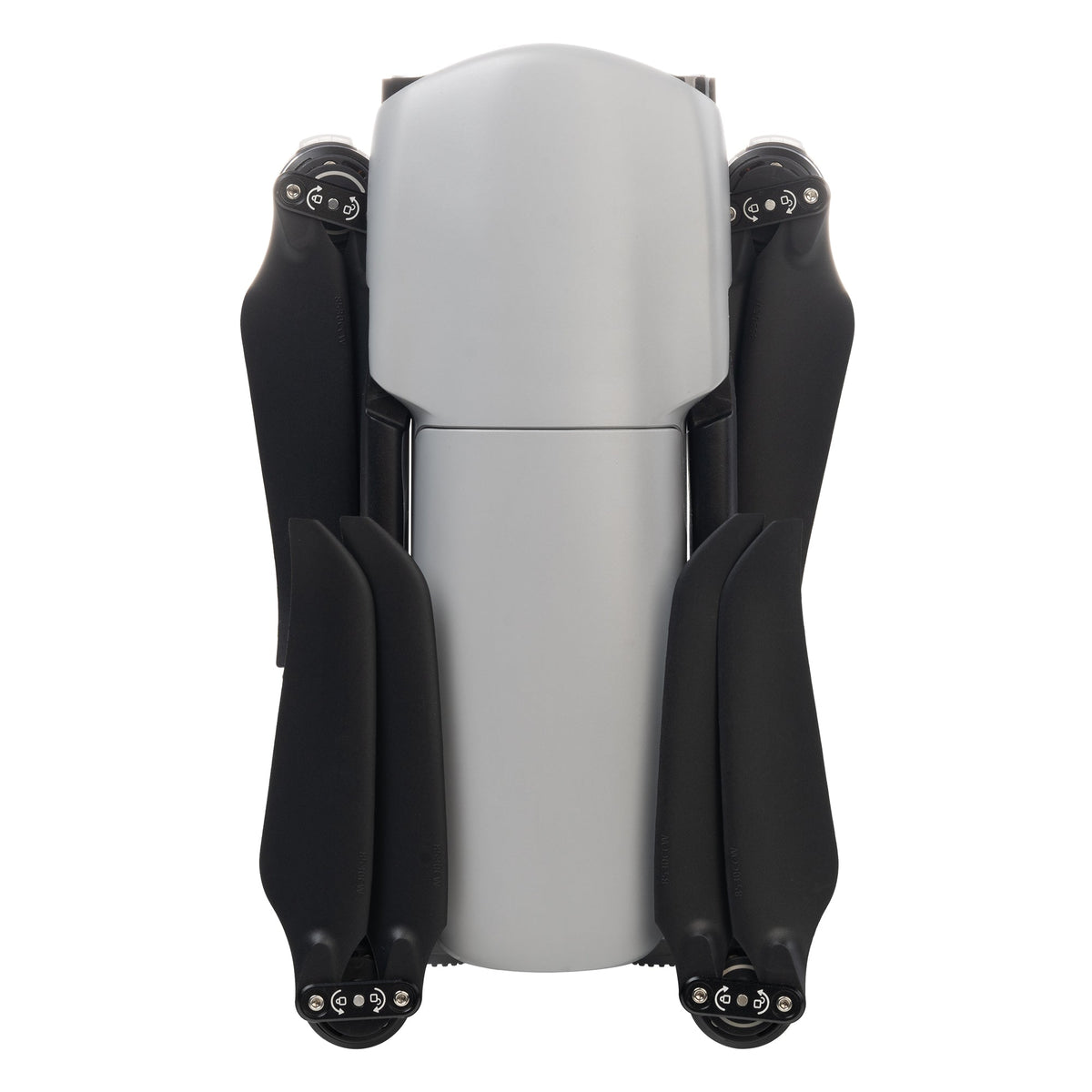

  • Lightweight and Portable

    Autel EVO Lite Enterprise Series aircraft weigh only 866 grams and have folded dimensions of just 210*123*95mm, making them easy to carry in a backpack. With a simple operation, they are ideal for efficient execution of missions by a single operator.

  • Lightweight and Portable

    Autel EVO Lite Enterprise Series aircraft weigh only 866 grams and have folded dimensions of just 210*123*95mm, making them easy to carry in a backpack. With a simple operation, they are ideal for efficient execution of missions by a single operator.

  EVO Lite 640T Enterprise

  EVO Lite 640T is equipped with a dual gimbal, the wide-angle visible-light camera offers a broad field of view with vivid high-definition images, while the infrared thermal-imaging camera integrates high-resolution thermal-imaging algorithms, providing clear and detailed thermal source identification.


  Thermal-Imaging
  Camera

  Visible-Light
  Camera
  • 640*512 resolution
  • 9.1 mm focal length
  • 16x digital zoom
  • Temperature measurement range:
    -20°C to 150°C / 0°C to 550°C
  • Temperature accuracy:
    ±3°C or ±3% of reading (whichever is greater)
  • 1/2 inch CMOS
  • 48 million pixels
  • F2.8 aperture
  • 16x digital zoom
  • Maximum photo size of 8000*6000
  • Maximum video resolution of 4K 30P

  See More with Split-Screen Zoom

  Experience the versatility of the Autel EVO Lite 640T, featuring simultaneous zoom adjustments for both visible and thermal cameras. With the innovative split-screen mode, you can easily switch between images, allowing for comprehensive environmental analysis. Simply tap the zoom link button and use the remote controller's dial wheel to synchronize zoom across multiple lenses for a seamless viewing experience.

  Advanced Temperature Measurement

  EVO Lite 640T elevates your environmental monitoring with Spot Temperature Measurement for instant readings and Regional Temperature Measurement for a broader analysis, showcasing average, maximum, and minimum temperatures within a selected area. The customizable measurement frame allows for precise tracking of temperature data wherever you need it.

  • •
    • Spot Temperature Measurement

      Tap the screen, and the temperature of the selected object will be displayed in real time.

    •
    • Regional Temperature Measurement

      Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.

  • •
    • Spot Temperature Measurement

      Tap the screen, and the temperature of the selected object will be displayed in real time.

    •
    • Regional Temperature Measurement

      Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.

  AI Target Recognition and Positioning

  Autel EVO Lite 640T uses AI to identify and display objects with real-time count and location markers on-screen. This intuitive feature helps operators quickly spot and track potential threats or important targets during missions.

  High-Definition Video Transmission

  Equipped with Autel SkyLink image transmission technology for a dual-signal, dual-reception system, the image transmission anti-interference capability improved, and the transmission distance reaches up to 12 kilometers. It supports 2.4GHz/5.2GHz/5.8GHz adaptive frequency hopping transmission, automatically selecting the best channel based on electromagnetic interference, providing strong anti-interference capability.


  • 12 kilometers
    Image transmission distance
  • 1080P/30FPS
    Real-time image transmission quality
  • <200 milliseconds
    Latency
  • 2.4GHz/5.2GHz/5.8GHz
    Frequency band transmission
  • 12 km
    Image transmission distance
  • 1080P/30FPS
    Real-time image transmission quality
  • 2.4GHz/5.2GHz
    5.8GHz
    Frequency band transmission
  • <200 ms
    Latency

  Visual Perception System

  Autel Robotics EVO Lite Enterprise 2024 is equipped with wide-angle vision sensors at the front, back, and bottom, ensuring reliable flight safety.

  Advanced Anti-Interference Capabilities

  Stay connected in challenging environments with the EVO Lite 640T’s robust anti-interference system. Its frequency-hopping technology and dual-frequency support ensure reliable communication, even in crowded or signal-jammed areas, offering dual transmission and reception.

  Flight Performance

  Born small but mighty. The outstanding flight performance of Autel EVO Lite Enterprise Series drones effortlessly tackles various challenges across multiple scenarios, significantly enhancing the efficiency of single-person mission flights.

  • 40 minutes
    of endurance
  • 18 m/s
    Maximum horizontal flight speed of
  • 3000 meters
    Maximum takeoff altitude of


  • 40 minutes
    of endurance
  • 18 m/s
    Maximum horizontal flight speed
  • 3000 meters
    Maximum takeoff altitude of



  SDK Ecosystem

  •
    •
      Mobile SDK

    • The open Mobile SDK provides efficient, versatile, and easy-to-use control and service interfaces, enhancing development efficiency and enabling the creation of custom solution scenarios.

  •
    • Mobile SDK

    • Open UX SDK (iOS/Android) can directly call up the ready-made interactive interface.

  Autel Enterprise App

  Autel Enterprise is a professional flight mission software designed for industry applications by Autel Robotics. It features an optimized interaction design for simple and efficient operation, an editable toolbar design for intuitive use, and integrates intelligent and professional functions to fully utilize the industry value of Autel EVO Lite Enterprise Series aircraft.



  • • Split-Screen Display

      Visible light, infrared, or map support dual-channel simultaneous output on the screen, providing comprehensive information through comparison.

    • Customizable Toolbar

      Customize the menu toolbar in the app for quick access to frequently used functions, meeting personalized usage needs.

    • Offline Maps

      Addresses the issue of map loading failures in no-network or weak-network environments by supporting offline maps, aiding in precise flight positioning.

  • • Split-Screen Display

      Visible light, infrared, or map support dual-channel simultaneous output on the screen, providing comprehensive information through comparison.

    • Customizable Toolbar

      Customize the menu toolbar in the app for quick access to frequently used functions, meeting personalized usage needs.

    • Offline Maps

      Addresses the issue of map loading failures in no-network or weak-network environments by supporting offline maps, aiding in precise flight positioning.

  Data Security with Multiple Protections

  • •
    • Privacy Protection

      Flight logs, locations, and other user privacy data require user consent to upload.

    •
    • Encrypted Storage

      Supports AES encryption for photos, videos, and flight logs, requiring a password for access.

    •
    • Video Live Streaming

      Supports RTMP and GB28181* protocols for live streaming, allowing for remote real-time viewing and analysis.

  • •
    • Privacy Protection

      Flight logs, locations, and other user privacy data require user consent to upload.

    •
    • Encrypted Storage

      Autel EVO Lite Enterprise SeriesSupports AES encryption for photos, videos, and flight logs, requiring a password for access.

    •
    • Video Live Streaming

      Lite Enterprise Supports RTMP and GB28181* protocols for live streaming, allowing for remote real-time viewing and analysis.

  Accessories

  • •
    • EVO Lite Multi-Charger - $59.00
      Charge up to 3 EVO Lite batteries: EVO Lite Multi-charger featured 3 battery ports that can charge up to 3 EVO Lite/ Lite+ Plus batteries simultaneously. Sequential-charging mode: The batteries will be fully charged one by one according to their power levels, from high to low.
    •
    • EVO Lite Battery - $159.00
      The Autel Robotics EVO Lite Intelligent Flight Battery is a spare or replacement battery for the EVO Lite series of drones. The EVO Lite Battery boasts up to 40 minutes of flight time thanks to its 6,175mAh, 11.13v lithium polymer battery technology. This added flight time is about 30 percent more than the competition.
    •
    • EVO Lite On-The-Go Bundle - $429.00
      The Autel EVO Lite+ On the Go Bundle is an accessory bundle that includes many essentials for the EVO Lite series including a shoulder bag, multi-charger, 2 spare batteries, 2 pairs of propellers, and a set of ND (Neural Density) filters. Everything you need to make the most of your new Lite+ drone.
  • •
    • EVO Lite Multi-Charger - $59.00
      Charge up to 3 EVO Lite batteries: EVO Lite Multi-charger featured 3 battery ports that can charge up to 3 EVO Lite/ Lite+ Plus batteries simultaneously. Sequential-charging mode: The batteries will be fully charged one by one according to their power levels, from high to low.


    •
    • EVO Lite Battery - $159.00
      The Autel Robotics EVO Lite Intelligent Flight Battery is a spare or replacement battery for the EVO Lite series of drones. The EVO Lite Battery boasts up to 40 minutes of flight time thanks to its 6,175mAh, 11.13v lithium polymer battery technology. This added flight time is about 30 percent more than the competition.


    •
    • EVO Lite On-The-Go Bundle - $429.00
      The Autel EVO Lite+ On the Go Bundle is an accessory bundle that includes many essentials for the EVO Lite series including a shoulder bag, multi-charger, 2 spare batteries, 2 pairs of propellers, and a set of ND (Neural Density) filters. Everything you need to make the most of your new Lite+ drone.

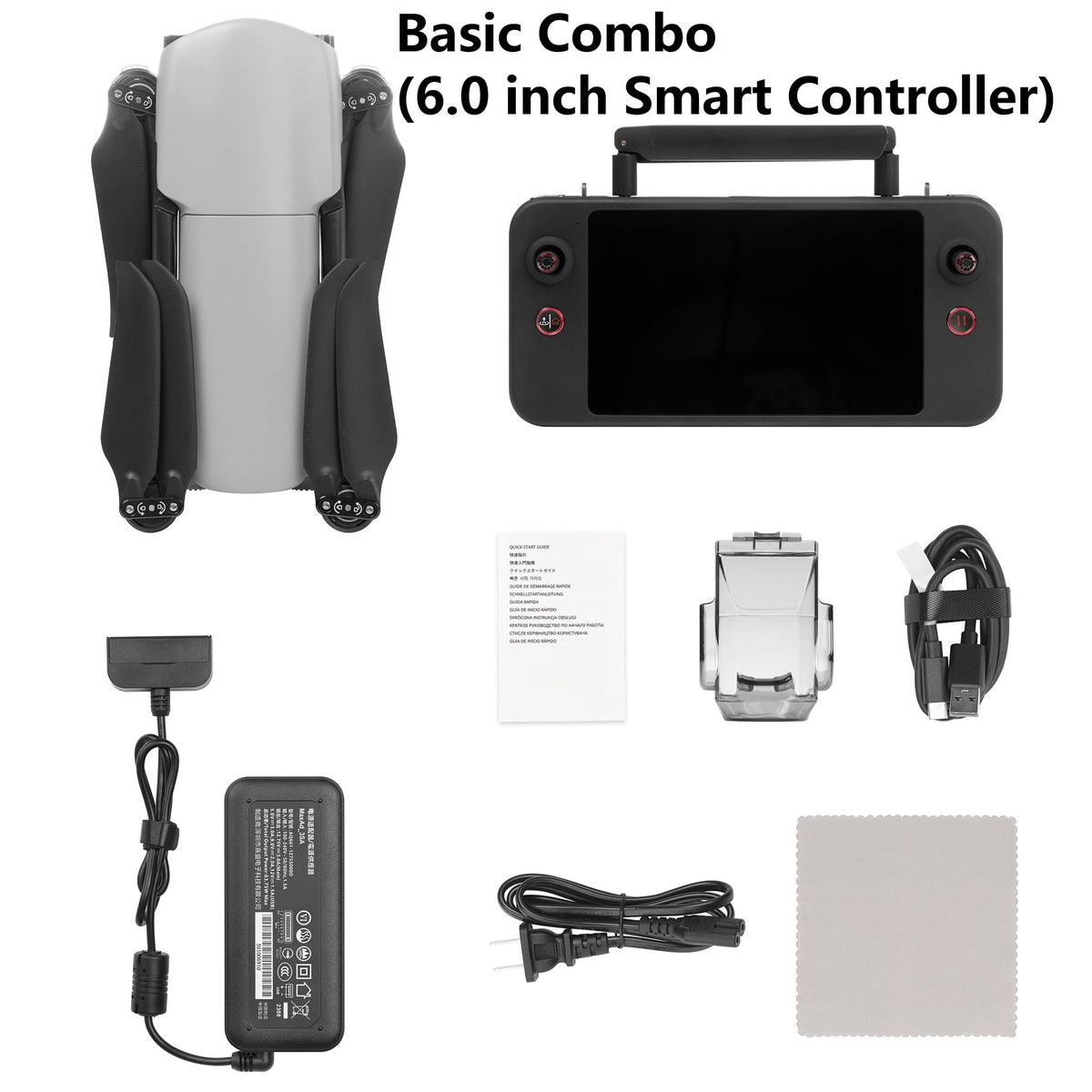

  Autel EVO Lite 640T Enterprise Basic Combo Package List

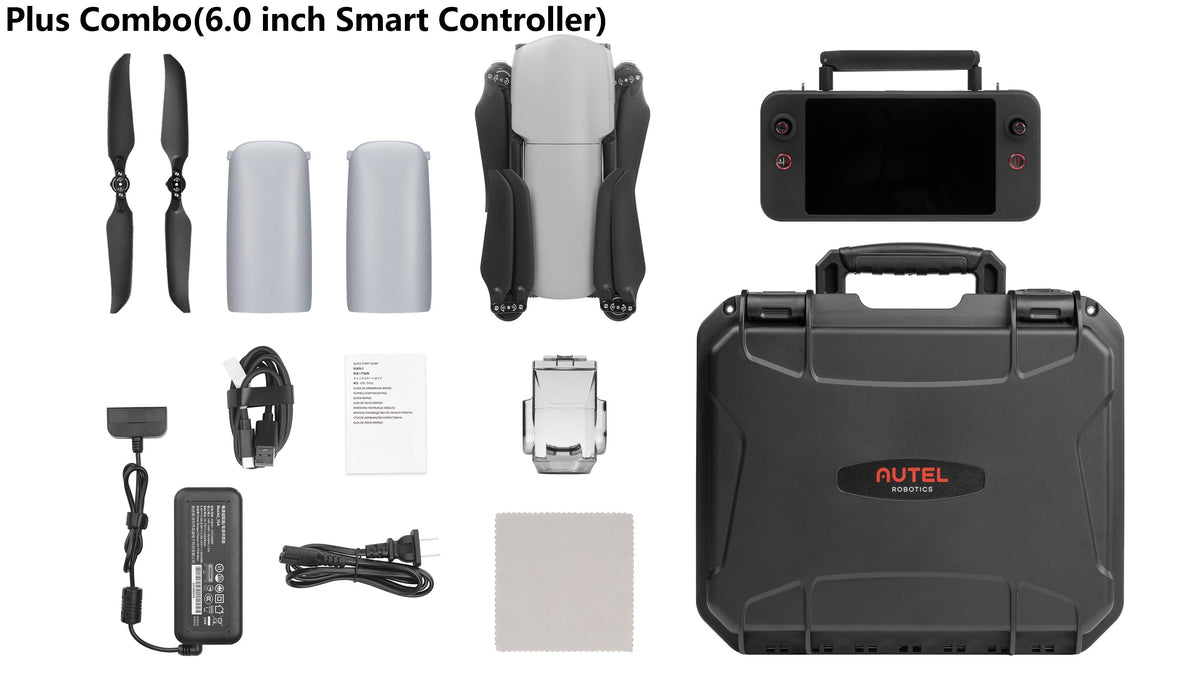

  Autel EVO Lite 640T Enterprise Plus Combo Package List



  Applications

  • •
    • Law Enforcement
    •
    • Security Patrol
    •
    • Emergency Rescue
  • •
    • Law Enforcement
    •
    • Security Patrol
    •
    • Emergency Rescue
•

• Autel Robotics EVO Lite 640T Enterprise Teachnical Specifications



  Aircraft

  Weight	866 g
  Maximum takeoff weight	866 g
  Dimensions	210×123×95mm (folded, propellers included) 433×516×95mm (unfolded, propellers included)
  Max. rotation speed	8000 rpm
  Wheelbase	368 mm
  Propeller Dimension	8.5 inch injection molded propeller. Spec: 8530
  Propeller weight	7.5 g
  Maximum ascent speed	Slow:3 m/s Smooth:3 m/s Standard: 5 m/s Ludicrous: 6 m/s
  Maximum descent speed	Slow:3 m/s Smooth:2 m/s Standard: 3 m/s Ludicrous: 4 m/s
  Maximum horizontal flight speed (no wind near sea level)	Slow :3 m/s Smooth:5 m/s Standard: 10 m/s Ludicrous: 18 m/s
  Maximum Service Ceiling Above Sea Level	3000 meters
  Maximum flight altitude	Chinese Mainland or EU: no more than 120 meters US: no more than 400 feet Note: In the flight application UAV, it can be set from 0 to 800 meters. To set beyond height required by law, you need to obtain authorization from authority.
  Maximum flight time (no wind)	40 minutes Note: Tested in lab with nearly no wind when aircraft flies at speed of 10 m/s and only for reference.
  Maximum flight mileage	24 km
  Maximum hover time (no wind)	37 minutes Note: Tested in lab with nearly no wind when aircraft hovers and only for reference.
  Maximum wind resistance level	Fresh breeze
  Maximum tilt angle	Slow: 15° Smooth: 30° Standard: 30° Ludicrous: 33°
  Maximum rotation angular speed	Smooth: 60°/s Standard: 120°/s Ludicrous: 200°/s
  Working temperature	-10℃~40℃
  Battery hot replacement	Not support
  Internal storage	Onboard storage: 4GB (support microSD card of up to 256GB)
  GNSS	GPS/BDS/GLONASS
  Hover accuracy	Vertically: ±0.1 meters (when visual positioning is working normally) ±0.3 meters (when GNSS is working normally) Horizontally: ±0.15 meters (when visual positioning is working normally) ±0.3 meters (when GNSS is working normally)



  Visual Perception System

  Sensing range	Forward: 0.2~23 meters Effective obstacle avoidance speed: ＜10m/s Backward: 0.2~30 meters Effective obstacle avoidance speed: ＜10m/s Downward: 0.2~20 meters
  FOV	Forward: 75° horizontally, 87° vertically Backward: 35° horizontally, 45° vertically Downward: 99° horizontally, 83° vertically
  Effective use of the environment	Front, rear: The surface has rich texture and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment) Below: The ground is richly textured and the lighting conditions are sufficient (>15 lux, normal indoor fluorescent lighting environment) The surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.)



  Image Transmission

  Operating Frequency	2.4G: 2.400 – 2.476 GHz*; 2.400 – 2.4835 GHz** 5.2G: 5.15 - 5.25 GHz*** 5.8G: 5.725 - 5.829 GHz*, 5.725 - 5.850GHz** *Only applies to SRRC regions **Only applies to FCC, ISED, CE, UKCA and RCM regions ***Only applies to FCC regions Note: Some frequencies are only available in some regions and some frequencies are only allowed for indoor use. Check local laws and regulations for details.
  Maximum signal effective distance (No interference, no obstruction)	FCC: 12 kilometers CE: 6 kilometers
  Effective transmitter power ( EIRP)	2.4G: ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC) 5.8G: ≤30dBm(FCC/SRRC/ISED/RCM); ≤14dBm(CE)



  EVO Lite 640T Enterprise - Visible Light Camera

  Image sensor	1/2 inch CMOS, 48 million pixels
  Lens	Field of view: 83.4° focal length: 24 mm Aperture: f/2.8 Focus distance: 0.5 meter ~ ∞ Focus: FF (Fixed Focus)
  ISO range	Auto Mode: ISO100 ~ ISO6400 Manual Mode: Video: ISO100 ~ ISO6400 Photo: ISO100 ~ ISO6400 Night scene mode: ISO100 ~ ISO32000
  Shutter speed	Photo mode: 1/8000 ~ 0.5 seconds Others: 1/8000 ~ 1/30 seconds
  Defog mode	Support
  Zoom	1 - 16x digital zoom
  Maximum photo size	3840×2160 P30 1920×1080 P30
  Photo format	JPG
  Photo shooting mode	Single shooting
  Video resolution	3840×2160 P30 1920×1080 P30
  Video format	MP4/MOV
  Video coding format	H.265/H.264
  Video maximum bit rate	100Mbps
  Support file system	FAT32/exFAT



  EVO Lite 640T Enterprise - Thermal Imaging Camera

  Image Sensor	Uncooled VOx Microbolometer
  Lens	FOV: 61° Focal length: 9.1 mm Aperture: f/1.0 Focusing distance: 2.2 m ~ ∞
  Sensitivity	≤50mK@f/1.0, 25°C
  Pixel Pitch	12um
  Wavelength	8 - 14um
  Radiometric Measurement Method	Center measurement/Pot measurement/Rectangular measurement
  Radiometric Temperature Range	-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
  Radiometric Measurement Accuracy	±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
  Accurate Temperature Measurement Distance	1 ~ 25 m
  Digital Zoom	16x digital zoom
  Temperature Alert	High and low temperature alarm thresholds, Reporting coordinates and temperature values
  Palette	White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
  Photo Size	640×512
  Photo Format	JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
  Photo Taking Mode	Auto
  Video Resolution	640×512@30FPS
  Video Format	MP4



  EVO Lite 640T Enterprise Gimbal

  Mechanical scope	Pitch: -135°~45° Roll: -50°~50° Yaw: -90°~90°
  Controllable rotation range	Pitch: -90°~30°
  Stable system	Three-axis stabilization
  Maximum control speed (pitch)	100°/s
  Angualr vibration range	±0.003°



  Autel Smart Controller SE V2

  Material	PC+ABS
  Dimensions	226.3×137.7×31.5 mm (antennas folded) 226.3×215.4×31.5 mm (antennas unfolded)
  Weight	607 g
  Operating Temperature	-10°C to 40°C
  Storage Temperature	+15°C ~ +25°C (within a year) 0°C ~ +30°C (within three months) -20°C ~ +45°C (within a month)
  Protection Rating	IP43
  Internal Storage	24GB
  MicroSD Extension	Supported
  Operating System	Based on Android 6.0.1
  Application Installation	Supports the installation of third-party Android apps
  USB -C	Charging: supports PD/QC fast charging, up to 65W
  USB -A	USB2.0
  GNSS	GPS+Galileo+BeiDou+GLONASS
  Wi-Fi Protocol	802.11a/b/g/n/ac Supports 2×2 MIMO Wi-Fi
  Wi-Fi Operating Frequency	2.4G: 2.400 – 2.476GHz*, 2.400 – 2.4835GHz** 5.8G: 5.725 - 5.829GHz*, 5.725 - 5.850GHz** *Only applies to SRRC regions **Only applies to FCC, ISED and CE regions Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations.
  Wi-Fi Effective Isotropic Radiated Power (EIRP)	2.4G: ≤30dBm (FCC/ISED); ≤20dBm(CE/SRRC) 5.8G: ≤30dBm (FCC/SRRC/ISED);≤14dBm (CE)



  Autel Smart Controller SE V2 - Image Transmission

  Antenna	Dual antennas, 1T2R, detachable design
  Operating Frequency	900M： 902 - 928MHz* 2.4G： 2.400 – 2.476GHz**，2.400 – 2.4835GHz*** 5.8G： 5.725 - 5.829GHz**，5.725 - 5.850GHz*** *Only applies to FCC and ISED regions **Only applies to SRRC regions ***Only applies to FCC, ISED and CE regions Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations.
  Effective Isotropic Radiated Power (EIRP)	900M： ≤30dBm (FCC/ISED) 2.4G： ≤30dBm (FCC/ISED); ≤20dBm(CE/SRRC) 5.8G： ≤30dBm (FCC/SRRC/ISED); ≤14dBm(CE)
  Maximum Transmission Distance (Without Interference and Blocking)	FCC: 12 km CE/SRRC: 8 km



  Autel Smart Controller SE V2 - Display

  Resolution	1440×720
  Refresh Rate	60Hz
  Touch Control	Supports 10-point touch



  Autel Smart Controller SE V2 - Battery

  Battery Type	Li-Po
  Rated Capacity	1900 mAh
  Voltage	7.7V
  Battery Energy	14.63 Wh
  Charging Time	About 90 minutes
  Battery Endurance	2 hours (Max brightness) 3 hours (50% brightness)
  Battery Replacement	Supported



  Smart Battery

  Operating Temperature	0~+40℃
  Battery Type	LiPo 3S
  Rated Capacity	6175 mAh
  Battery Energy	68.7 Wh
  Voltage	11.13 V
  Charging Voltage Limit	12.75V
  Rated Charging Power	63.75W
  Rated Charging Power	78W
  Weight	309g
  Battery charging temperature	+5-+45℃ (When the battery temperature is below 5℃, the battery stops charging. When the battery temperature is above +45℃, the battery stops charging.)



  Battery Storage

  Ideal storage environment	+ 22℃ ~ +28℃
  Storage temperature and humidity	- 10℃ ~ +30℃, 65 ± 20%RH



  Battery Charger

  power input	100-240V ~ 50/60 Hz, 1.5 A
  Output port	Battery charging interface/USB-A
  Battery charging interface	12.75V⎓5A
  USB charging port	5V⎓3A, 9V⎓2A, 12V⎓1.5A
  Rated power	63.75W Max

• Autel EVO Lite 640T Enterprise Basic Combo Packing List



  Autel EVO Lite 640T Enterprise Plus Combo Packing List



• Name	Download
  Autel EVO Lite Enterprise Series Aircraft User Manual
  Autel EVO Lite Enterprise Series Basic Combo Packing List
  Autel EVO Lite Enterprise Series Plus Combo Packing List
  Autel EVO Lite Enterprise Series Quick Start Guide
