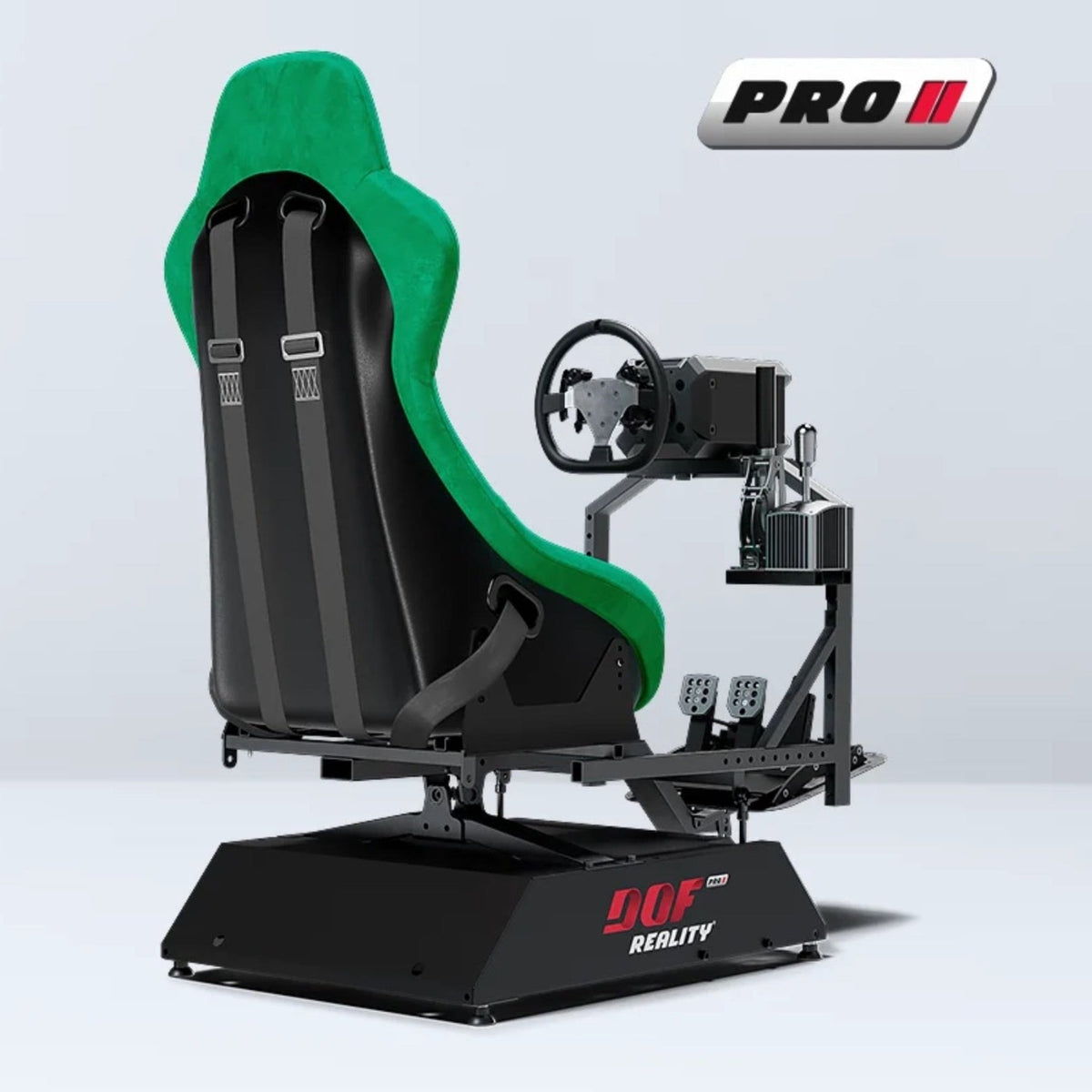

DOF Reality P2 2-Axis Professional Motion Simulator Platform

Professional Pitch and Roll Motion for Demanding Simulation Setups

The DOF Reality P2 2-Axis Professional Motion Simulator Platform is designed for commercial, training, and advanced personal simulation environments where consistent motion performance and durability are important. Its two-axis system provides controlled pitch and roll movement, adding physical motion feedback to a wide range of simulation experiences.

The P2 uses a full-cockpit movement design, allowing the simulator's cockpit to move together rather than limiting motion to individual components. This provides coordinated physical feedback that can complement the visual and audio elements of the simulation.

Two-Axis Full Motion

The P2 provides two primary motion axes:

  • Pitch – Forward and backward tilting movement

  • Roll – Side-to-side tilting and banking movement

Together, these movements can reproduce physical cues associated with flight and other simulations, including:

  • Climbing and descending

  • Aircraft banking

  • Turbulence

  • Approach adjustments

  • Changes in simulator orientation

Full-Cockpit Movement

The P2 is designed to move the entire cockpit as a unified platform, helping maintain consistent positioning between the user, controls, and simulator display.

This configuration allows physical movement to work alongside the simulation environment, creating a more cohesive experience during flight and other simulated scenarios.

Built for Extended Operation

As part of the DOF Reality P-Series, the P2 is designed for environments where motion platforms may be used frequently and for extended periods.

Compared with the enthusiast-focused H-Series, the P-Series incorporates reinforced motors and commercial-grade drivetrain components engineered for longer daily operating sessions.

This makes the P2 suitable for applications where consistent and repeatable motion performance is an important consideration.

Designed for Multiple Applications

The DOF Reality P2 can be incorporated into a variety of simulation environments, including:

  • Flight simulation

  • Training facilities

  • VR venues

  • Simulation laboratories

  • Commercial simulator installations

  • Dedicated home cockpits

  • Advanced personal simulation setups

Professional-Grade Motion Platform

The P2 provides a practical two-axis solution for users who want physical motion feedback without moving to a more complex multi-axis platform.

Its professional-oriented construction and reinforced drive components make it suitable for repeated operation in demanding simulation environments.

Key Features

  • 2-axis / 2-DOF motion

  • Pitch and roll movement

  • Full-cockpit motion design

  • Coordinated cockpit movement

  • Controlled and repeatable motion feedback

  • Reinforced motors

  • Commercial-grade drivetrain components

  • Designed for extended daily operation

  • Suitable for flight simulation

  • Suitable for training facilities

  • Suitable for VR venues

  • Suitable for simulation laboratories

  • Suitable for dedicated home cockpits

  • Professional-grade platform design

Why Choose the DOF Reality P2?

The DOF Reality P2 2-Axis Professional Motion Simulator Platform provides a straightforward way to add physical movement to an advanced simulator setup.

With pitch and roll motion, full-cockpit movement, and P-Series components designed for sustained operation, the P2 offers a professional-grade foundation for users who prioritize consistent motion feedback and reliable repeated use.

Customer Support

Have questions about the DOF Reality P2 2-Axis Professional Motion Simulator Platform, compatibility, installation, or ordering?

HobbiesKing Customer Support
📞 800-705-9530
✉️ support@hobbiesking.com


Key Features

2-Axis Full-Platform Motion (Pitch & Roll)
Provides motion across two primary axes: pitch (forward and backward tilt for acceleration and braking) and roll (side-to-side lean). This delivers realistic tilt feedback for racing, flight, helicopter, and truck simulations on a single platform.

Professional P-Series Motors
Equipped with reinforced P-Series motors and drivetrains, designed for repeated daily operation and extended run times in professional and commercial environments.

Universal Platform Design
Configured as a universal motion base, the P2 supports racing, flight, helicopter, truck, off-road, and mixed-use cockpits. Top-mounted controls such as wheels, yokes, or HOTAS systems can be swapped without changing the motion base.

Full-Cockpit Motion
Moves the entire cockpit assembly, including the seat, steering wheel or yoke, pedals, shifter or HOTAS, and mounted accessories. This synchronized movement helps maintain consistent physical feedback across the body.

Smooth and Responsive Motion Control
The drive system is optimized for controlled, smooth movement at low speeds while still delivering responsive motion cues for braking, acceleration, curbing, and weight transfer.

Compact and Rigid Frame
Built on a compact steel frame suitable for home simulator rooms, studios, or commercial installations, while maintaining the rigidity required for high-torque force-feedback wheels and advanced pedal systems.

PC and VR Compatibility
Designed for use with PC-based motion software and compatible with major racing and flight simulators. The platform can be used with VR systems when configured with appropriate motion compensation.

Upgradeable Platform
Provides a solid starting point for future expansion, allowing progression from a 2-axis setup to higher-axis configurations depending on long-term requirements.


  • Software Compatibility

    Using motion middleware such as SRS or SimTools, the P2 can be configured to work with a broad range of simulation titles, including:

    • Racing simulators: Assetto Corsa and Competizione, iRacing, rFactor 2, F1 series, Dirt Rally, Project CARS, and similar titles

    • Flight simulators: Microsoft Flight Simulator, X-Plane, DCS World, IL-2, Prepar3D (via supported telemetry plugins)

    • Helicopter and VTOL simulations: Profiles that take advantage of smooth, low-speed pitch and roll response

    • VR ride and experience titles: Supported through telemetry or custom plugins where available

    Who the P2 Universal Is Suited For

    • Commercial VR and simulator venues that require a single motion base capable of switching between racing, flight, and helicopter simulations

    • Training environments that need a durable and repeatable motion platform for procedural and attitude training

    • Enthusiasts seeking professional-grade motors and extended session capability

    • Content creators and event operators running motion platforms for long daily demonstrations

    What’s Included

    DOF Reality P2 2-Axis Motion Base
    Professional 2-DOF motion system (pitch and roll) with P-series motors and smooth SFU gearboxes pre-installed.

    Universal Steel Frame
    Rigid frame with mounting slots for seat, wheel or yoke, pedals, shifter or HOTAS, and accessories.

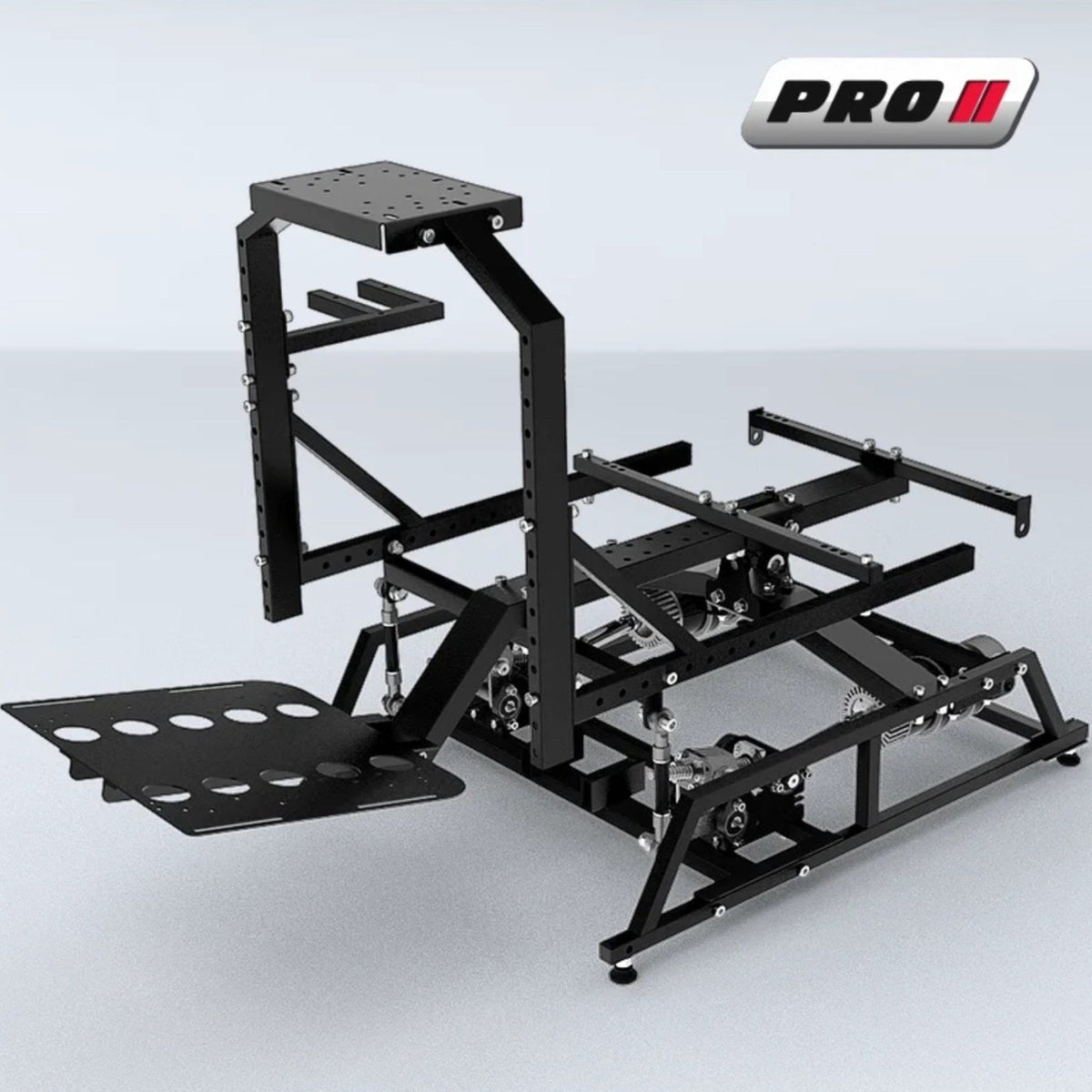

    Motor and Linkage Assembly
    Industrial motors, gearboxes, and motion linkages pre-mounted to the platform.

    Electronic Control Unit
    Motion controller with USB connection and power input (100–240 V AC, 50/60 Hz).

    Mounting Hardware
    Required bolts, brackets, and fasteners for assembling the platform and mounting controls.

    Setup and Software Instructions
    Guidance for connecting the platform to supported motion software and compatible simulators.

    Not Included:
    Seat, steering wheel or yoke, wheel base, pedals, HOTAS or collective, button boxes, displays, PC, or VR headset. These components are user-supplied to allow custom cockpit configuration.

    Product Specifications

    • Motion Type: 2-axis full-platform motion (pitch and roll)

    • Degrees of Freedom: 2 DOF

    • Intended Use: Professional / commercial operation designed for extended daily use

    • Drive System: P-series motors with SFU smooth-drive gearboxes

    • Motion Range: Up to approximately 20° per axis (configuration dependent)

    • Maximum Speed: Up to approximately 75 cm/s under typical load

    • Supported Load: Up to approximately 200 kg combined user and cockpit weight

    • Platform Weight: Approximately 40–50 kg, depending on configuration

    • Input Voltage: 100–240 V AC, 50/60 Hz

    • Peak Power Draw: Approximately 500–750 W under heavy motion

    • Software Compatibility: Works with telemetry-based motion software such as SimRacingStudio and SimTools

    • Motion Coverage: Full-cockpit motion including seat and mounted controls

    Getting Started Guide

    1. Unpack and verify components
      Carefully unpack all items and confirm that the motion base, frame parts, control unit, cables, and hardware are present before assembly.

    2. Prepare the installation area
      Select a flat, stable surface with adequate space for motion travel and safe cable routing.

    3. Assemble the steel frame
      Bolt the frame components together following the provided diagrams, tightening fully after alignment is confirmed.

    4. Secure the motion base
      Mount the motion base to the frame and tighten all fasteners to prevent movement during operation.

    5. Install seat and controls
      Mount the seat and primary controls, adjusting position for comfort before final tightening.

    6. Install accessories and check clearances
      Mount any optional accessories and verify that all components move freely through the full motion range.

    7. Connect control electronics
      Position the control unit with adequate airflow, connect motor cables, USB, and power input.

    8. Install motion software
      Install compatible motion software on the PC and select the appropriate device profile.

    9. Run initial motion tests
      Power on the system and perform basic motion tests to confirm smooth and correct operation.

    10. Configure simulator profiles
      Enable telemetry in supported games and fine-tune motion settings for comfort and immersion.

    Setup and Installation Recommendations

    Space and Safety

    • Allow sufficient clearance around the platform for motion travel

    • Keep surrounding areas free of rigid obstacles

    • Ensure easy and safe entry and exit

    Mounting and Hardware

    • Use supplied hardware and re-check fasteners after initial use

    • Confirm mounted components stay within recommended weight limits

    Cabling and Power

    • Secure cables along frame paths with adequate slack

    • Keep ventilation openings unobstructed

    Software and Tuning

    • Start with lower motion intensity and increase gradually

    • Maintain separate profiles for different simulator types

    Maintenance

    • Periodically clean actuators and linkages

    • Inspect for loose hardware or unusual noise

    • Perform routine checks in commercial environments


Available Add-On Options:

2-DOF Transportation Wheels:


This optional portability add-on equips the platform with two heavy-duty front wheels. The wheels allow the assembled platform to be lifted from the rear so the front wheels contact the floor, enabling easier movement, loading, and repositioning.

This add-on is suitable for situations that require frequent relocation within a space or during events. It is compatible with H2 and P2 platform models.

Metal Cyber Cover:


This enclosure is designed to protect the lower moving components of the motion platform. The metal cover features a durable outer shell intended to shield internal mechanisms while maintaining a clean, enclosed appearance.

It helps limit exposure to moving parts, reduces dust and spill contact with mechanical components, and provides a streamlined exterior. The enclosure is constructed from lightweight, laser-cut, powder-coated steel for durability.

This cover is compatible with H2, H3, P2, and P3 platform models.


Pedals Quick Release:


This quick-release add-on is useful for users who switch between multiple pedal sets, such as flight and racing pedals. It allows pedals to be swapped quickly and also provides additional adjustment range, making it easy to slide a single pedal set forward or backward for fine positioning.
HoneyComb A+B Adapter:


This adapter allows compatible yoke and throttle controls to be mounted securely to the standard wheel plate.

Monitor Mount:



 A VESA-standard (100 mm × 100 mm) single-monitor mount is available, supporting displays up to 33 lb (15 kg). Before ordering, ensure the platform is equipped with SFU gearboxes and the latest wide wheel-support vertical bars for compatibility.
MagicBox for PS5/XBOX:





The Console Link (MagicBox) allows motion data to be received directly from compatible console games without requiring a Windows PC. It enables motion control to be managed using a mobile device or tablet when operating a motion platform with console-based simulators.

This device is intended for users who plan to run motion exclusively from console games without a PC. It supports motion control only and does not replace other controllers such as steering wheels, pedals, or flight controls. The motion platform connects directly to the Console Link for console-based motion operation.

eBreak Stop Button:



The emergency stop button can be mounted on the platform within easy reach, allowing motion to be stopped immediately when needed. It is compatible with all platform models.
HOTAS Mounts Kit:


Flight controls mounts kit for HOTAS. It includes throttle and flight joystick mounts. Joystick can be mounted in the center or on the side. This kit fits all our platform except M series.

Soft Protection Cover:




To protect you we also provide flexible moving parts protection cover. This cover fits H2, H3, P2 and P3 platforms.

Cables Extension Set for 2-3 DOF:





This cable set connects the control box to the motors. The standard cables are 1.2 m (4 ft) in length and are suitable for most common installations.

For 2- or 3-DOF platforms, the recommended control box placement is beneath the pedal plate. For 6-DOF platforms, placement under the seat is typically preferred, as this helps reduce cable routing complexity. Extension cables are only required if the control box is positioned farther from the platform than standard mounting locations.

 Buttkicker Mount:


This is a mounting bracket designed for use with a tactile transducer commonly referred to as a “ButtKicker.” This type of device is a vibration unit that attaches to a simulator frame, typically beneath the seat or on a structural crossbar, and produces physical feedback based on audio or telemetry signals.

The vibration feedback can represent effects such as engine vibration, road surface changes, gear shifts, wheel slip, and impact sensations in both driving and flight simulators.

The bracket is designed to position the vibration unit in an optimal location on the frame to ensure effective transfer of vibrations through the simulator structure.

Sparco R100 Seat:

The Sparco R100 is a steel-frame foldable seat featuring updated bolster shaping for improved support and revised padding for enhanced comfort. The seat is supplied with sliders and the required mounting hardware.

 Sparco Sprint Seat:

The Sprint is an FIA-approved racing bucket seat designed for competitive use and simulator setups. It combines a tubular steel frame with a suspended bottom cushion to provide support and comfort in the driving position.

Compact shoulder bolsters allow the seat to fit well in smaller cockpit configurations. The seat supports both bottom mounting and traditional side mounting options. Openings are provided for five- or six-point harness systems.

Size: Medium (suitable for users up to a 34″ waist)
The seat includes side brackets, sliders, and the necessary mounting hardware.

Sparco R333 Seat:



The Sparco R333 features a modern, foldable design suited to contemporary street vehicles. It includes shaped bolsters and padding to provide improved support and comfort, along with dual adjustment levers positioned on both sides of the seat for easy positioning.

The seat includes openings for five- or six-point harness systems and is supplied with seat sliders and the required mounting hardware.

4-Point Harness (Red):

Finished in a red design, this harness is built with ultra-light, high-strength steel adjusters, an aluminum buckle, and snap-hook fasteners for secure and efficient attachment.

Constructed from 2-inch wide polyester webbing, it is designed for durability and comfort, with branded detailing for a clean, professional appearance.



Frequently Asked Questions

Q: What’s the main difference between the H2 and the P2?

Both the H2 and P2 offer two motion axes (pitch and roll). The P2 belongs to the Professional series and uses heavier-duty motors and reinforced gearboxes designed for extended daily operation in commercial or training environments. The H2 is intended for home users, while the P2 is built to support higher loads and longer operating sessions.

Q: Can I use it for both flight and racing simulators?

Yes. The P2 is a universal motion platform that supports racing simulators, flight controls, helicopter setups, truck simulators, and custom training configurations. Different cockpit setups can be mounted on the same base, making it suitable for mixed-use environments.

Q: How noisy is it?

Under normal operating conditions, the P2 typically operates in the mid-40s to low-50s dB range, depending on load and motion intensity. Mechanical movement may be audible during aggressive motion, but noise levels are generally manageable for home and studio use.

Q: Is the setup complicated?

Most users find the setup straightforward. Assembly includes building the frame, installing the motion base, mounting the seat and controls, connecting the control unit, and configuring the motion software on a PC. If you are comfortable assembling furniture or sim rigs, setup is manageable. Allow a few hours for assembly and initial tuning.

If you need assistance during setup or configuration, contact support@robotechwave.com or call 442 221 9746.

Q: Can I upgrade later?

Yes. The platform is modular and can be expanded with additional motion axes or traction modules depending on model compatibility. Upgrade paths may vary by production run. If future expansion is important to you, we recommend confirming options in advance by contacting support@robotechwave.com or 442 221 9746.

Q: What is the maintenance schedule?

Maintenance requirements are minimal. Typical recommendations include:

  • Periodically checking and tightening major bolts

  • Keeping actuators and electronics free of dust

  • Applying light lubrication to moving joints every 6–12 months under heavy use

Commercial installations operating daily may benefit from brief routine inspections.

Q: What’s included in the box, and what do I need to supply?

The package includes the motion base, steel frame, motors, control electronics, and mounting hardware. Users must supply their own seat, controls (wheel, pedals, yoke, or HOTAS), PC, display or VR headset, and simulator software.

Q: How much space do I need?

The platform footprint is similar to a standard sim rig. Additional clearance is recommended for motion travel and safe access. A general guideline is approximately a 6 ft × 6 ft area, with sufficient ceiling height for the seated user.

Q: What is the weight capacity?

The P2 is designed to support a combined load of up to approximately 200 kg (440 lb), including the user, seat, and mounted equipment. Heavier custom builds should be reviewed in advance to confirm compatibility.

Q: Will it work with PlayStation or Xbox?

Console compatibility depends on game-level motion data support. Only certain titles provide motion telemetry. Additional hardware or configuration may be required. For help determining compatibility or setup options, please contact support@robotechwave.com or 442 221 9746.

Q: What seat should I use?

The platform supports most bottom-mount automotive or gaming seats. Seat choice depends on personal comfort and simulator style. Lighter seats generally allow more responsive motion. Optional harness systems can be added but are not required.

Seat Mount Dimensions:

  • Depth: 280 mm

  • Width options: 345 mm, 375 mm, or 405 mm

Q: Does it come assembled?

The system ships in multiple boxes to ensure safe delivery. Assembly is required and allows users to configure the platform to their specific setup.

Q: How does motion compensation work with VR?

The platform supports VR use, but motion movement can affect headset tracking. In most cases this effect is minimal. If visual movement is noticeable, reducing motion intensity often resolves the issue. Software-based motion compensation tools may also be used depending on headset type.

If you need guidance with VR configuration or motion compensation settings, please contact support@robotechwave.com or 442 221 9746.

  • FREE SHIPPING IN USA

    Free shipping with every order

  • SATISFACTION GUARANTEED

    If your order arrives defective or fails

    to function properly, you will receive a full 100% refund!

  • PREMIUM CUSTOMER SUPPORT

    Connect with us through email, or

    phone, and we will address any questions you may have!

  • SECURE ENCRYPTED PAYMENTS

    We utilize advanced encryption to

    ensure there is never an issue with your privacy.
