DOF Reality H6 Universal Motion Simulator Platform

SKU H6R
$7,999.00
$7,999.00

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Hobbies King, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@hobbiesking.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

Product Description

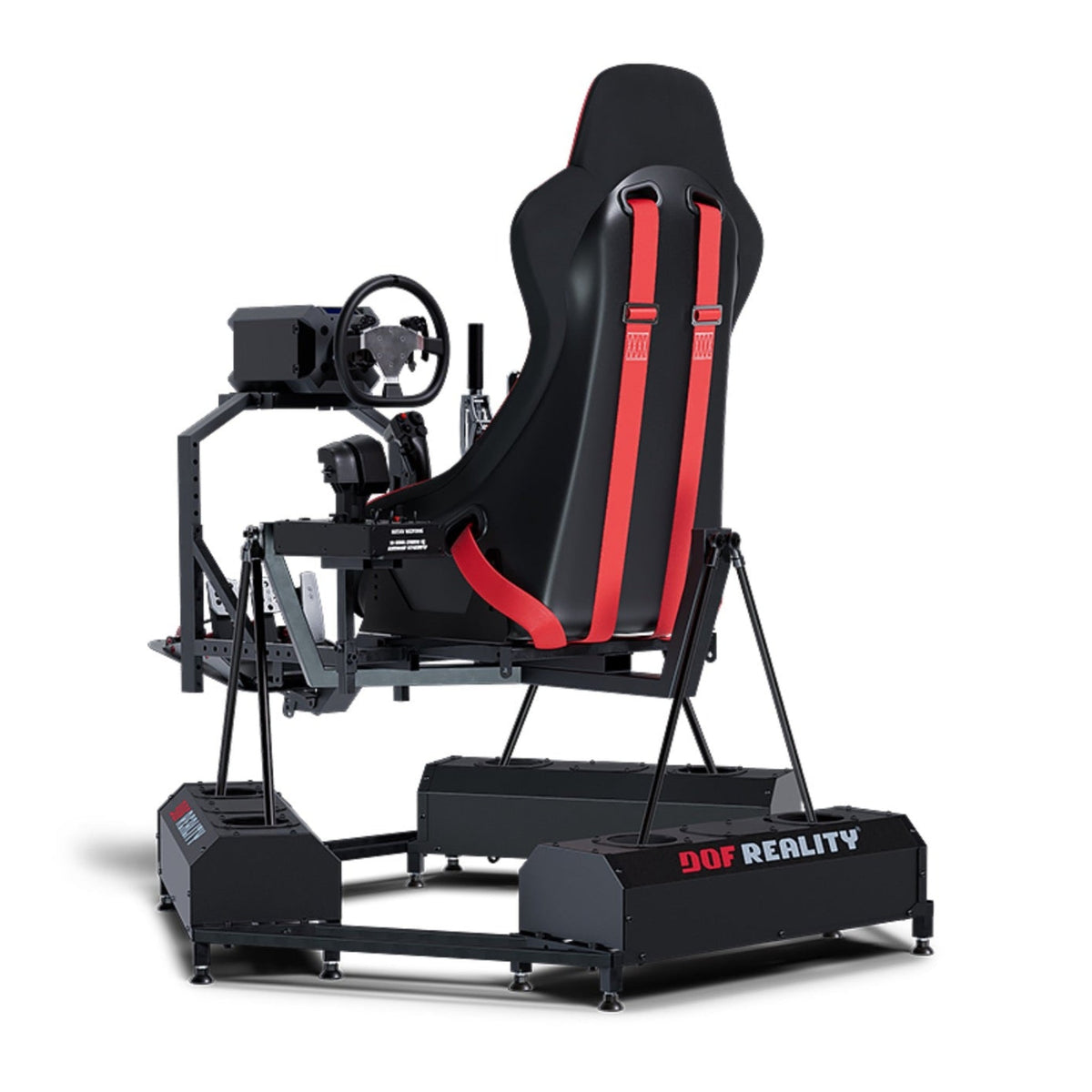

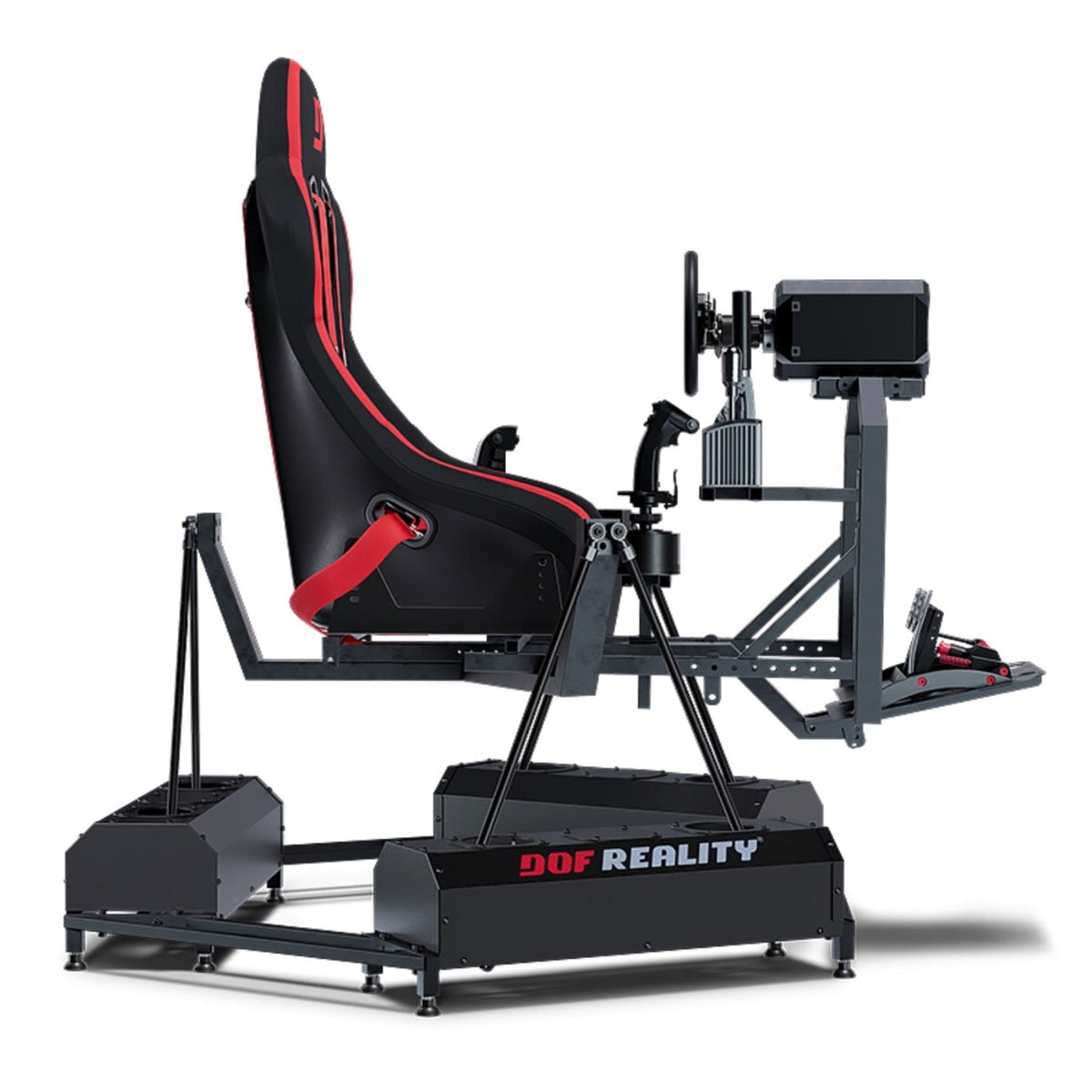

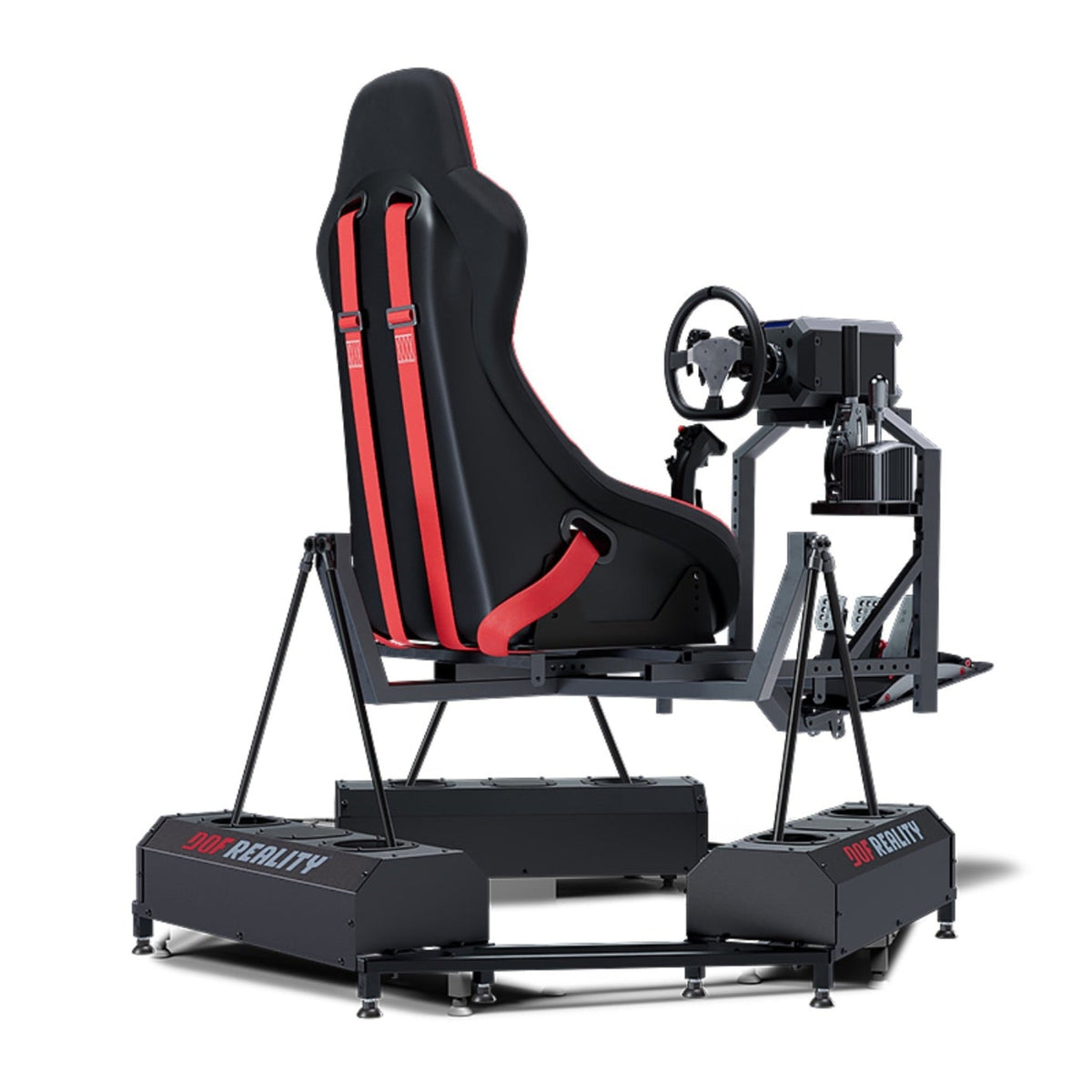

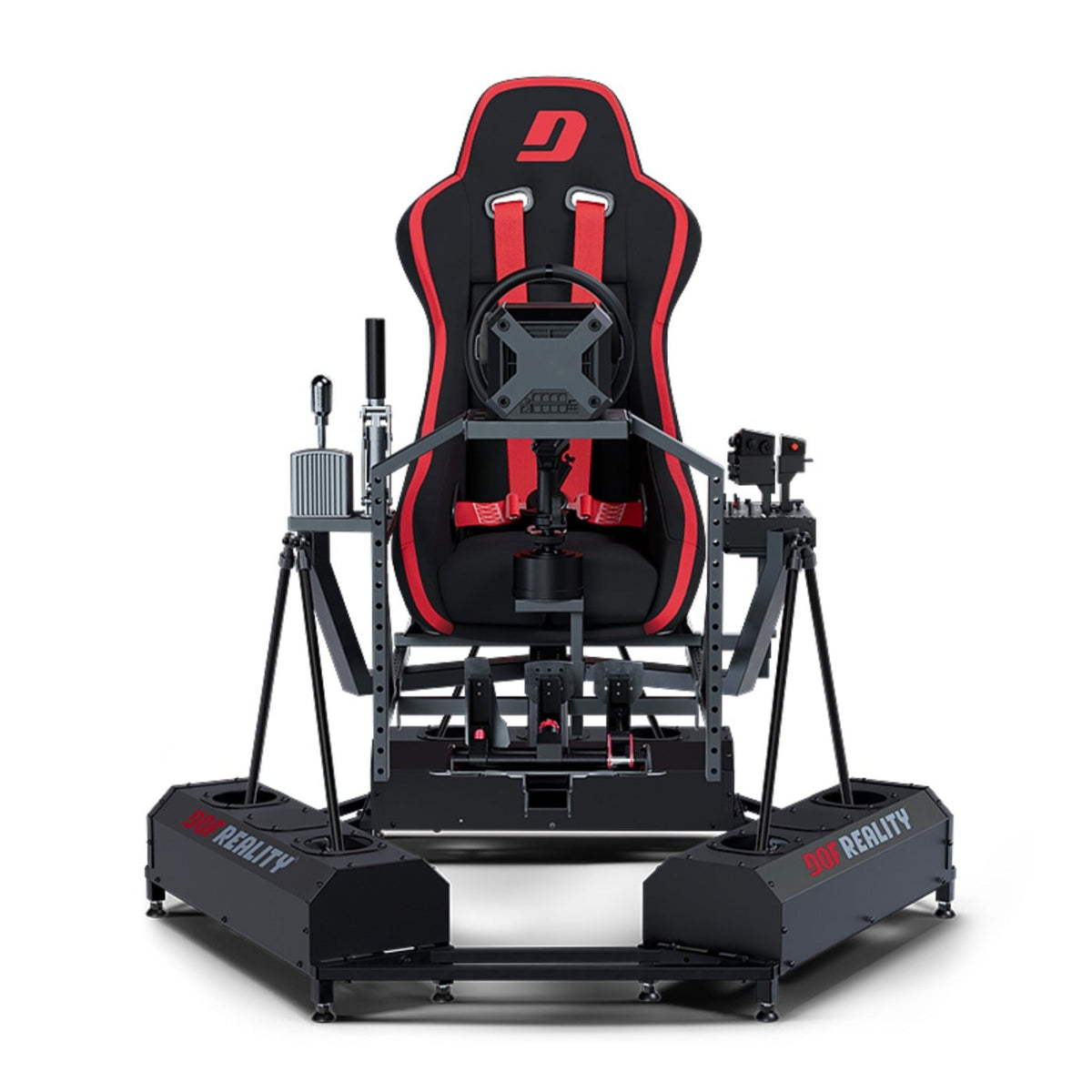

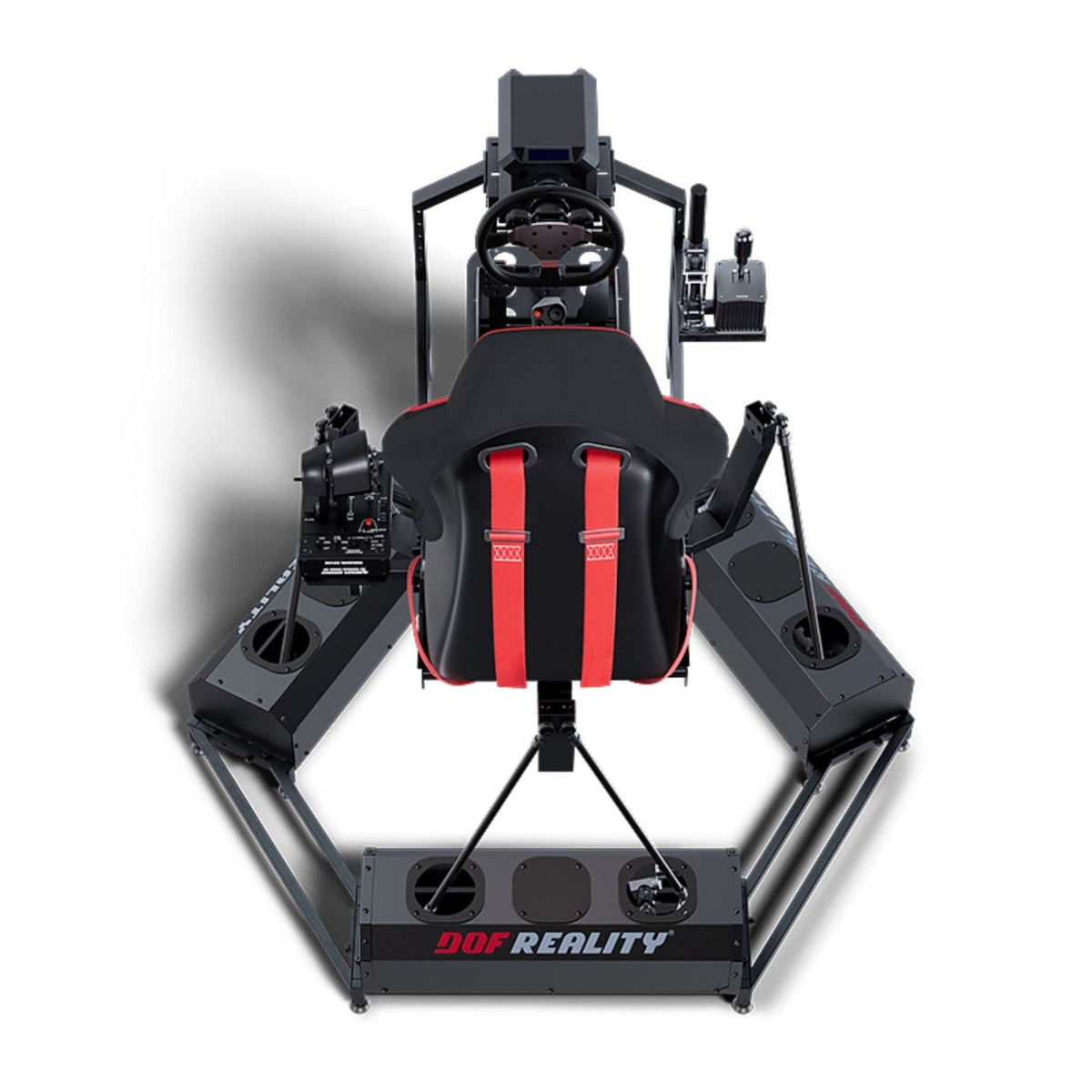

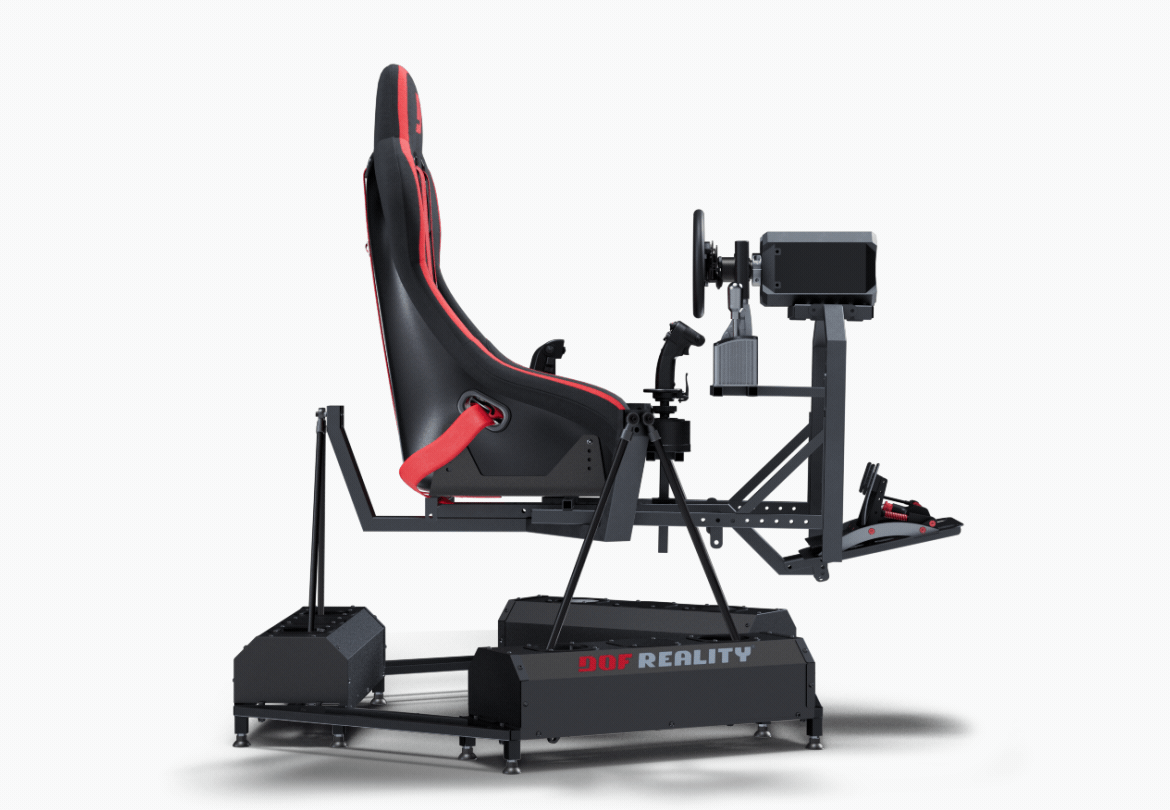

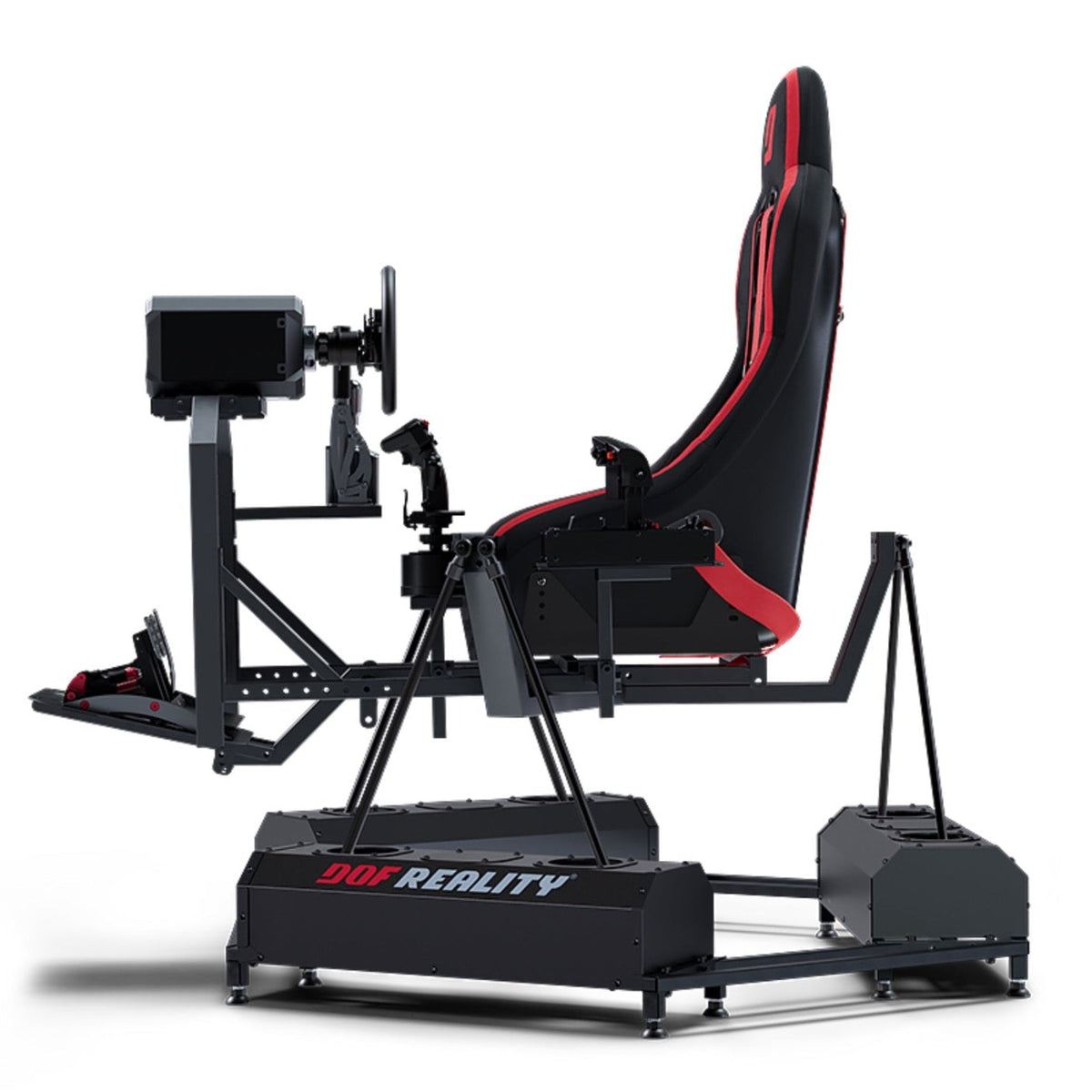

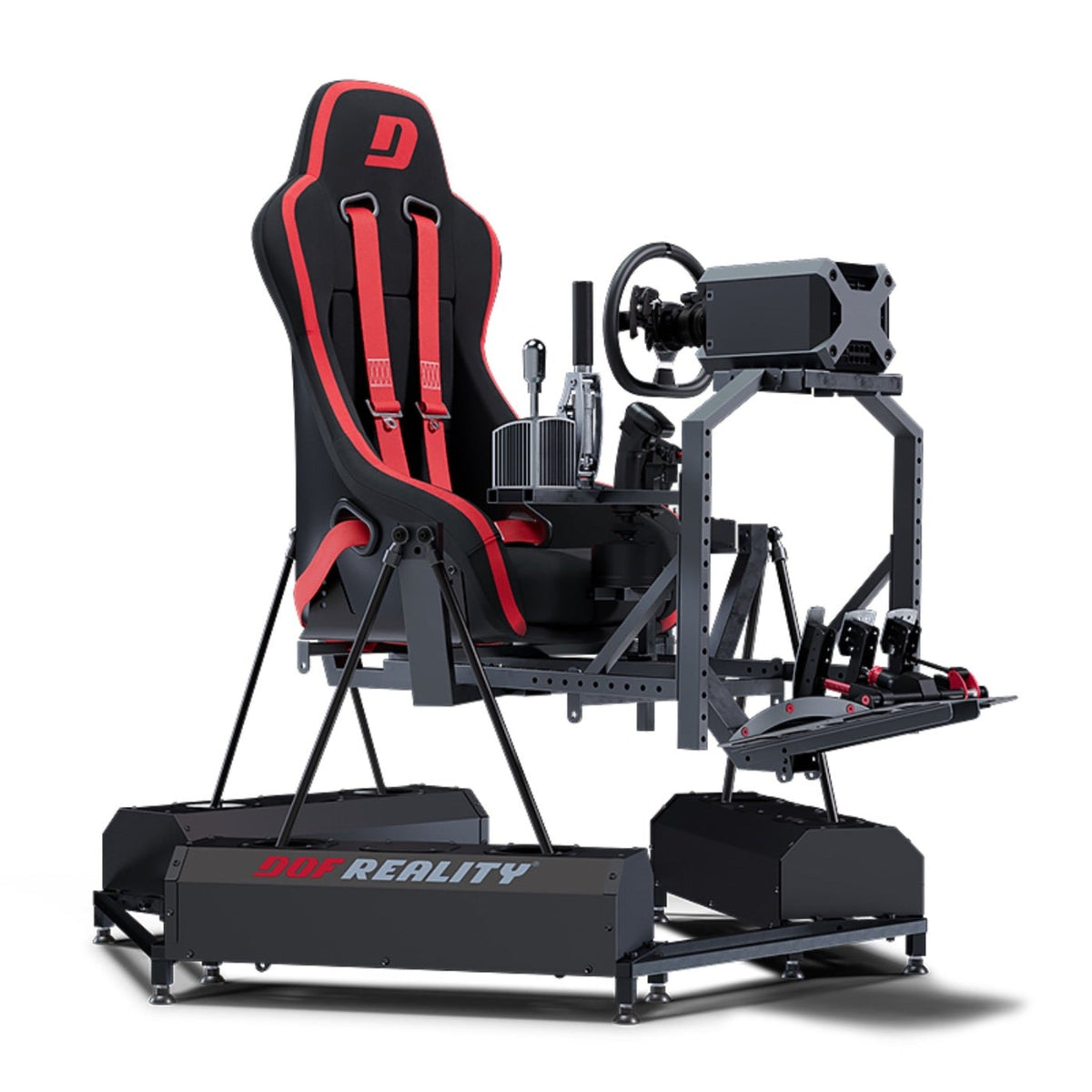

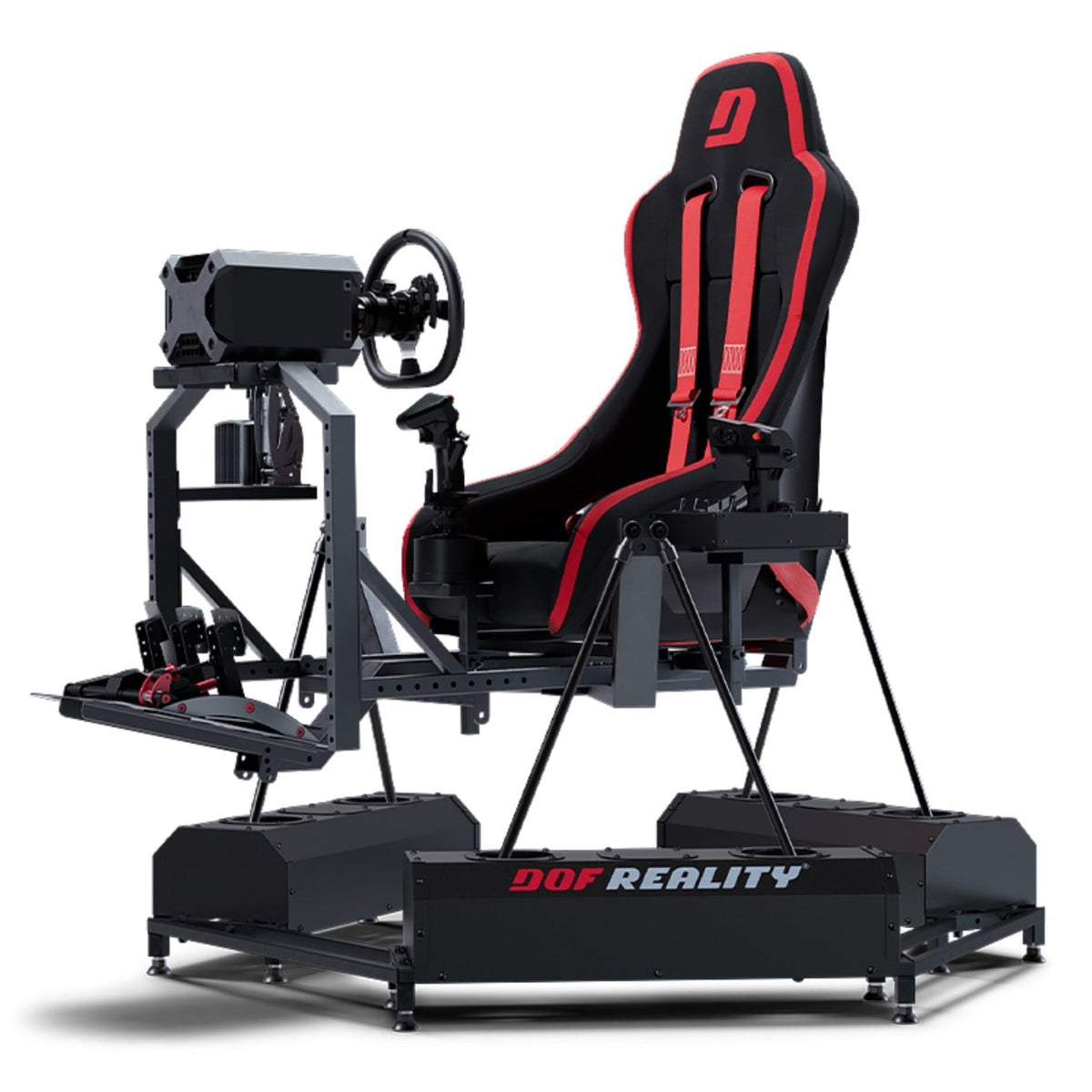

DOF Reality H6 6-Axis HERO Universal Motion Simulator Platform

Full 6-Axis Motion for a More Immersive Simulation Experience

The DOF Reality H6 6-Axis HERO Universal Motion Simulator Platform brings physical movement into advanced simulation setups with a complete six-degree-of-freedom motion system. Designed for flight, racing, vehicle simulation, training, and immersive VR applications, the H6 translates simulation data into coordinated physical movement.

With independent motion across heave, sway, surge, pitch, roll, and yaw, the H6 can reproduce a wide variety of movement cues, helping users physically experience acceleration, directional changes, banking, turbulence, and other simulated effects.

Complete Six-Axis Motion

The H6 provides movement across all six degrees of freedom:

  • Heave – Vertical movement

  • Sway – Side-to-side movement

  • Surge – Forward and backward movement

  • Pitch – Forward and backward tilting

  • Roll – Side-to-side tilting

  • Yaw – Rotational movement

These axes can work together to create coordinated physical movement that complements the visual and audio components of a simulation.

Designed for Realistic Simulation

The H6 is engineered to convert simulation inputs into controlled physical motion. Depending on the simulator and software configuration, it can reproduce motion cues associated with:

  • Aircraft turbulence

  • Changes in lift

  • Vehicle acceleration and braking

  • Cornering and lateral movement

  • Banking

  • Surface irregularities

  • Vibrations and movement

  • Directional changes

  • Rotational movement

This adds a physical dimension to simulation, allowing users to feel movement rather than relying solely on visual feedback.

Built for Demanding Simulator Setups

The H6 combines reinforced motion actuators, a dedicated motion-control system, and a rigid chassis to provide a solid foundation for advanced simulation environments.

Its universal platform design allows it to be integrated into different simulator configurations, making it suitable for both dedicated installations and sophisticated home setups.

Versatile Simulation Applications

The DOF Reality H6 can be used across a wide range of simulation environments, including:

  • Flight simulation

  • Racing simulation

  • Vehicle simulation

  • Professional training environments

  • Advanced home simulator setups

  • Immersive VR experiences

  • Entertainment simulation systems

Universal Motion Platform

The H6 is designed as a universal motion platform, rather than being limited to a single type of simulator. This gives users flexibility when building a customized racing, flight, vehicle, or VR simulation system.

Its six-axis architecture provides a broad range of physical movement while allowing the platform to serve as the foundation for different simulator configurations.

Key Features

  • Full 6-axis / 6-DOF motion

  • Heave, sway, surge, pitch, roll, and yaw

  • Reinforced motion actuators

  • Dedicated motion-control system

  • Rigid chassis construction

  • Universal simulator platform

  • Designed for flight and racing simulation

  • Suitable for vehicle simulation

  • Suitable for professional training environments

  • Suitable for advanced home simulator setups

  • Compatible with immersive VR applications

Why Choose the DOF Reality H6 HERO?

The DOF Reality H6 HERO is designed for users who want to move beyond a stationary simulator. Its six independent motion axes add physical movement to simulated events, creating a more engaging and immersive experience.

From racing and flight simulation to training and VR entertainment, the H6 provides a versatile motion platform for users building advanced simulation environments.

Customer Support

Have questions about the DOF Reality H6 6-Axis HERO Universal Motion Simulator Platform, compatibility, installation, or ordering?

HobbiesKing Customer Support
📞 800-705-9530
✉️ support@hobbiesking.com







Product Features

Product Features:

Six Degrees of Freedom (6DOF) Explained

The H6 reproduces the full range of natural motion cues experienced during real movement. Each motion axis contributes a specific type of force feedback, working together to create a fully coordinated physical motion experience.

Pitch
Forward and backward tilting simulates climbs, descents, takeoffs, braking, and acceleration.

Roll
Side-to-side tilt represents banking turns, cornering forces, and in-flight turbulence.

Yaw
Rotational movement simulates rudder input, oversteer, drifting, and spin maneuvers.

Heave
Vertical movement allows users to feel lift, surface bumps, and turbulence as the platform rises and falls.

Sway
Side-to-side translation recreates crosswinds, lateral grip loss, and sideways force loading.

Surge
Forward and backward translation simulates acceleration, deceleration, and weight transfer.

Each axis is driven by an independent high-torque actuator, producing smooth, real-time motion that stays synchronized with simulator telemetry.

Professional-Grade Design and Engineering

Industrial Steel Construction
The H6 is constructed from reinforced, laser-cut, and welded steel tubing, creating a rigid frame capable of supporting over 150 kg of combined user and equipment weight. The reinforced structure limits flex so motion feedback is delivered accurately to the cockpit.

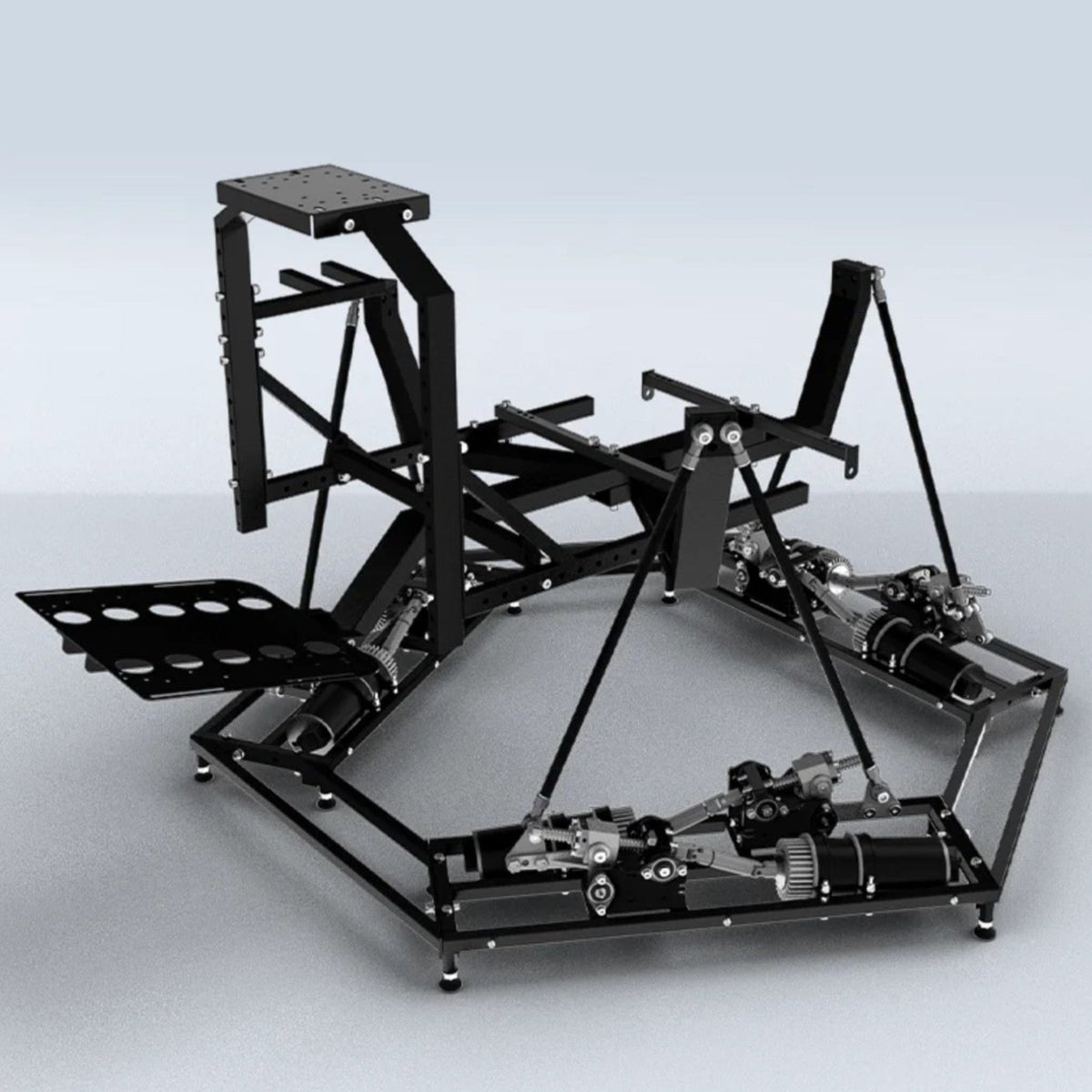

Six Independent Actuators
Each axis is powered by a precision-tuned electric worm-gear actuator designed for controlled, high-speed movement. Closed-loop feedback sensors help maintain consistent positioning and torque, supporting smooth and stable motion across all six axes.

Low-Noise Drive System
Despite its power output, the H6 operates at low noise levels, typically below 50 dB. Worm-gear drives and vibration-dampened linkages help reduce sound output, making the platform suitable for home, training, and shared environments.

Advanced Motion Control
The integrated controller uses adaptive control algorithms to convert simulator telemetry into accurate motion cues with high timing precision. This allows movements such as small directional corrections or mid-corner force changes to remain closely aligned with on-screen activity.



Plug-and-Play Compatibility with Leading Sim Titles


  • The H6 is compatible with a wide range of major flight and racing simulation software that supports motion telemetry.

    Flight Simulation
    Microsoft Flight Simulator 2024 and 2020
    X-Plane 12 and 11
    DCS World
    IL-2 Sturmovik Great Battles
    FlightGear
    Prepar3D

    Racing Simulation
    Assetto Corsa and Competizione
    iRacing
    Project CARS 2 and 3
    F1 24
    Dirt Rally 2.0
    rFactor 2
    BeamNG.drive

    When used with motion software such as SimRacingStudio or SimTools, the platform reads in-game physics data and converts it into synchronized motion.

    Users can adjust settings including motion strength, smoothing to reduce sharp transitions, per-axis behavior, and VR synchronization. This allows motion output to be tuned for comfort, realism, or training-focused precision.

    What’s Included

    DOF Reality H6 Platform
    Six-axis motion base supporting heave, sway, surge, pitch, roll, and yaw, with actuators and frame pre-assembled.

    Universal Cockpit Mounting Frame
    Adjustable frame designed to support common seats, pedals, wheels, and flight controls.

    Motion Control Unit
    USB-connected motion controller configured for plug-and-play operation.

    Software License
    License for compatible motion control software.

    Cables and Power Supply
    Auto-voltage power support from 100 to 240 V AC with regional plug options.

    Assembly Hardware and Tools
    Mounting hardware and step-by-step installation instructions.

    Manufacturer Warranty
    One-year warranty covering the platform and actuators, with extension options available.

    Not included: Seat, steering wheel or yoke, pedals, wheel base, HOTAS or collective controls, button boxes, displays, PC, or VR headset. These items are user supplied to allow custom cockpit configurations.

    Product Specifications

    Degrees of Freedom: 6
    Motion Range: Approximately plus or minus 20 degrees rotational and up to 100 mm vertical travel
    Speed: Up to approximately 50 to 60 cm per second
    Load Capacity: Up to approximately 150 kg combined
    Power Requirement: 100 to 240 V AC
    Maximum Power Draw: Approximately 1,500 W
    Noise Level: Below approximately 50 dB
    Platform Weight: Approximately 90 kg
    Frame Material: Powder-coated steel
    Control Interface: USB
    Motion Software Compatibility: SimRacingStudio, SimTools, FlyPT Mover, XSim
    Operating System: Windows 10 and 11
    Warranty: One year, extendable

    Getting Started Guide

    Select Your Location
    Allow approximately 7 ft by 7 ft of floor space on a flat, stable surface.

    Unpack and Organize
    The platform ships in multiple crates. Unpack all components and verify them against the provided checklist.

    Assemble the Frame
    Attach actuator arms, base structure, and support components following the installation guide. Mount the seat and control hardware.

    Connect the Electronics
    Connect the motion control unit to the PC via USB and attach the power supply.

    Install the Software
    Install compatible motion software and enable telemetry for the selected simulator.

    Calibrate and Test
    Run a test cycle to confirm all six axes operate correctly and adjust motion settings as needed.

    Begin Operation
    Launch the simulator and observe synchronized motion during use.

    Setup and Installation Recommendations

    Power off the system before making adjustments.
    Inspect bolts and joints periodically.
    Keep actuators clean and free from debris.
    Apply light lubrication to actuator shafts when needed.
    Route cables to avoid interference with moving components.
    Use surge protection for electronic equipment.
    Enable motion compensation when using VR systems.


Add On Options:

6 DOF Transportation Wheels:

This option is an portability addition. It provides two heavy duty front side wheels to the platform. One person can lift the the whole assembled platform from the back and the front wheels will touch the floor allowing quick movement, and for loading and unloading the whole platform. It great for frequent relocations in the house or during events. This kit fits H6 and P6 platforms.

Pedals Quick Release:



This quick-release add-on is designed for users who alternate between two pedal sets, such as flight and racing pedals. It allows pedals to be changed quickly without re-mounting and also provides additional adjustment range, making it easy to slide a single pedal set forward or backward for fine positioning.

HoneyComb A+B Adapter:


If you have HoneyComb Alpha Bravo yoke and throttle this adapter will make them fit to our standard wheel plate.

Monitor Mount:




Now we offer VESA standard (100 mm × 100 mm) mount for one monitor up to 33lbs (15kg). Make sure you have the SFU gearboxes and the latest(wide) wheel support vertical bars before ordering it.

MagicBox for PS5/XBOX:



This Console Link (MagicBox) allows motion data to be received directly from supported console games without the need for a Windows PC. Motion is processed through compatible software and can be managed using a mobile device or tablet.

This option is intended for users who plan to use motion exclusively with console games and without a PC. It supports motion output only and does not replace other controllers such as steering wheels or pedals. The motion platform connects directly to the Console Link for console-based motion operation.

eBreak Stop Button (6 DOF):




E Break emergency button can be placed on the platform within a close reach to stop any platform motions immediately. It is compatible with any platform model.

HOTAS Mounts Kit:


Flight controls mounts kit for HOTAS. It includes throttle and flight joystick mounts. Joystick can be mounted in the center or on the side. This kit fits all our platform except M series.

Lift Supports for 6 DOF:




This option helps 6 DOF systems to lift even more weight. It provides three heavy-duty Lift Supports and a mounting kit. It is needed only for pilots over 300 lbs/ 136 kg or other significant loads.

Cables Extension Set for 6 DOF:



This cable set connects the control box to the motors. The standard cables are 1.2 m (4 ft) long and are sufficient for most common installations.

For 2- and 3-DOF platforms, placing the control box under the pedal plate is recommended. For 6-DOF platforms, positioning the control box under the seat is typically preferred, as this helps reduce cable routing. Extension cables are only required if the control box needs to be mounted farther from the platform.

 Buttkicker Mount:


This is a mounting bracket designed for use with a tactile transducer commonly known as a ButtKicker. A tactile transducer is a vibration device that attaches to a simulator rig, typically under the seat or on the frame, and produces physical feedback based on audio or telemetry signals.

The vibration feedback can represent effects such as engine RPM and idle vibration, road surface changes, gear shifts, wheel slip, and impact sensations in both racing and flight simulations.

The bracket positions the transducer in an optimal location on the frame, such as a crossbar or beneath the seat, to ensure efficient transfer of vibration through the simulator structure.

Sparco R100 Seat:

The Sparco R100 is Sparco’s latest incarnation of groundbreaking steel-model foldable seats. It features redesigned bolsters for greater support and new padding configurations for improved comfort. The seat comes with sliders and all hardware needed.

 Sparco Sprint Seat:

The Sprint is an FIA-approved racing bucket seat designed for competition use and motion simulator setups. It offers a balance of safety, comfort, and practicality, with a tubular frame and a suspended bottom cushion to support a comfortable driving position.

Its shoulder bolsters are shaped to fit well in smaller cockpit layouts. The seat supports both bottom mounting and traditional side mounting and includes openings for five- or six-point harness systems.

Size: Medium, suitable for users up to a 34-inch waist.
The seat is supplied with side brackets, sliders, and the necessary mounting hardware.

Sparco R333 Seat:

The Sparco R333 offers a stylish foldable and modern look to match today’s street cars. Featuring bolsters and padding designed for greater support and comfort, the R333 has 2 easy to use adjustment levers located on both sides of the seat. There are openings for a fifth or six point seatbelt. The seat comes with sliders and all hardware needed.

4-Point Harness (Red):

Designed in vibrant red, this harness combines style and safety with ultra-light high-strength steel adjusters, an aluminum buckle, and snap-hook fastenings for quick and reliable setup.

Made from 2-inch wide polyester webbing, it ensures durability and comfort, complete with DOF Reality branding to elevate your simulator experience.



FAQs

Frequently Asked Questions

Q: How is the H6 different from the H2 or H3?

The H2 operates with two motion axes, pitch and roll. The H3 adds a third axis, yaw. The H6 expands this to all six degrees of freedom by adding heave (vertical movement), surge (forward and backward motion), and sway (side-to-side movement). This allows the H6 to deliver a more complete range of physical motion cues compared to partial-motion platforms.

Q: Will it work with PlayStation and Xbox?

Yes, with limitations. Console systems operate within closed platforms, and only certain games transmit motion telemetry. Motion support is available only for compatible titles and requires dedicated console motion hardware. Motion functionality applies to platform movement only and does not replace standard console controllers.

Q: What seat should I use with the platform?

Seat selection depends on personal comfort and driving or flying style. The H6 supports most bottom-mounted automotive and gaming seats.

Bucket-style racing seats are commonly used for added stability during higher motion intensity. Lightweight seats are recommended, as they allow faster and more responsive motion. Harness systems are optional.

Seats with sliders or rails are recommended for easier adjustment. Some bucket seats may require additional mounting brackets or adapters.

Seat Mount Dimensions:
Depth: 280 mm
Width options: 345 mm, 375 mm, or 405 mm

Q: Can I use it for both racing and flight simulation?

Yes. The H6 is designed for hybrid use and performs equally well in racing and flight simulation scenarios, from road vehicles to fixed-wing aircraft and helicopters.

Q: Does it support VR headsets?

Yes. The H6 is compatible with major VR headset systems. Motion software supports motion compensation features to help maintain stable visuals as the platform moves.

Q: How loud is the platform?

The H6 is engineered for quiet operation, typically producing noise levels below approximately 50 dB, even during full motion. This makes it suitable for indoor or shared environments.

Q: How difficult is assembly?

The platform ships partially pre-assembled. Most users complete installation and calibration within one to two hours using basic hand tools.

Q: Can I upgrade components later?

Yes. The H6 supports modular add-ons and accessory upgrades, including enhanced control systems and additional mounting options for specialized applications.

Q: What is the maintenance requirement?

Maintenance needs are minimal and generally include periodic bolt checks and light lubrication at regular intervals. The platform is designed for long-term use.

Q: How does motion compensation work with VR?

When the platform moves, the VR headset moves with the user, which can slightly affect visual alignment. In most cases this effect is minimal.

If noticeable visual movement occurs, reducing motion intensity in the software settings often improves stability. Motion compensation software can also be used to help align the headset view with platform movement.

Tracking devices should be securely mounted to the platform and isolated from excessive vibration to maintain consistent tracking performance.



  • FREE SHIPPING IN USA

    Free shipping with every order

  • SATISFACTION GUARANTEED

    If your order arrives defective or fails

    to function properly, you will receive a full 100% refund!

  • PREMIUM CUSTOMER SUPPORT

    Connect with us through email, or

    phone, and we will address any questions you may have!

  • SECURE ENCRYPTED PAYMENTS

    We utilize advanced encryption to

    ensure there is never an issue with your privacy.
